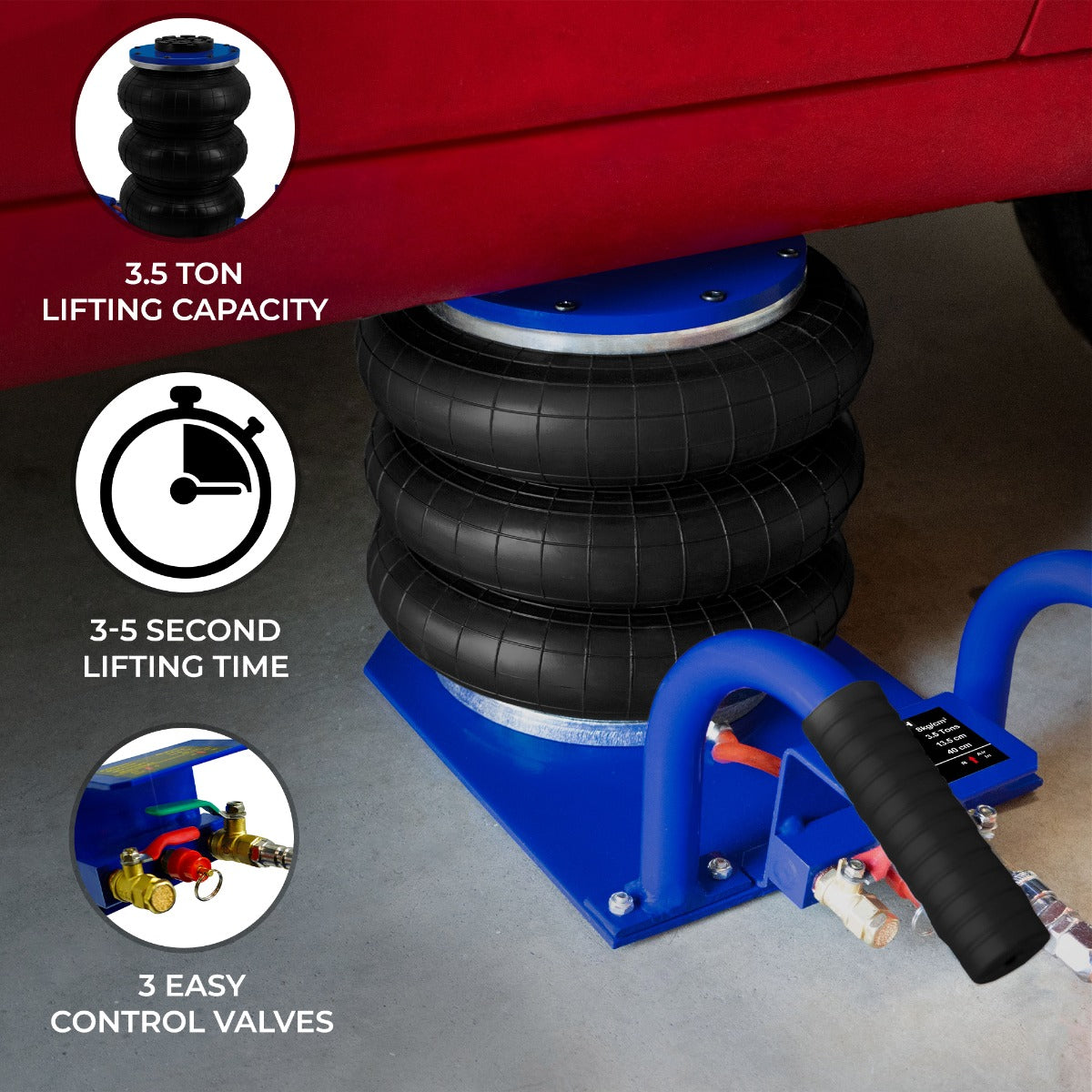

3.5-Ton Air Bag Jack with Carrying Handle

The 3.5-ton Air Bag Jack is a high-performance lifting tool designed for garages and professional workshops, enabling quick and stable vehicle elevation for maintenance tasks.

Constructed with a powder-coated steel frame and three rubber cushions, each topped with a non-slip pad to enhance stability during operation. With a lifting capacity of 3.5 tons (7,700 lbs), it accommodates a wide range of vehicles from compact cars to larger vans.

The lifting range spans 13.5 cm to 40 cm, providing flexibility for diverse lifting tasks. A lifting cycle time of 3-5 seconds supports efficient work. The compact design and two rubber grip handles boost portability for use in a shop or on-site.

The system uses a triple-valve design: an air input valve to connect to a compressor, an air outlet valve for precise height adjustments, and a safety valve to ensure secure operation. Connect to a compatible air compressor, adjust the height with the valves, and lift the vehicle to the desired height.

Elevate your lifting tasks with this heavy-duty 3.5-ton air bag jack—an efficient, portable tool designed for vehicle maintenance in professional and home workshops.

Product Features:

• Heavy-duty frame with 3 rubber cushions
• Capacity: 3.5 Ton / 7,700 lbs
• Lifting range: 13.5 cm to 40 cm (5.3" to 16")
• Lifting time: 3-5 seconds
• Compact & portable with 2 rubber grip handles

Specifications:

• Color: Blue
• Weight: 14.9 kg
• Material: Powder-coated steel
• Minimum height: 165 mm (6.5 in)
• Maximum height: 400 mm (15.7 in)
• Width: 260 mm (10.2 in)
• Depth: 510 mm (20.1 in)
• Lifting range: 135 mm - 400 mm (5.3" - 16")
• Pressure: 8 kg/cm²
• Capacity: 3.5T
• Cushion material: Rubber
• Number of cushions: 3
• Working temperature: -60°C to 50°C

Box Contents:

• 1 x 3.5T Air Bag Jack
