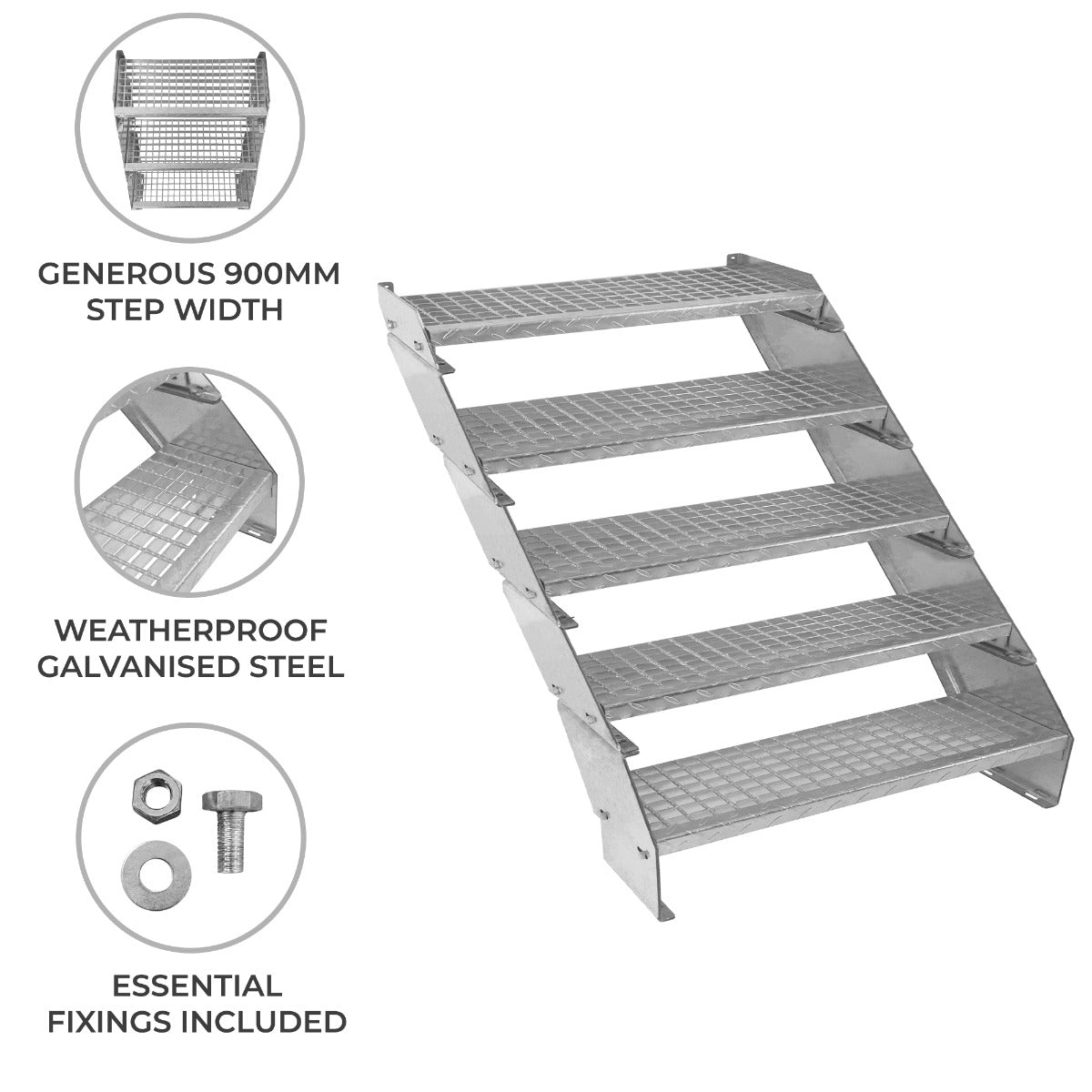

Adjustable 5-Section Galvanised Staircase, 900mm Wide

Our adjustable galvanised staircase provides safe, convenient access for a range of spaces. Engineered to suit your layout, it offers robust construction with flexible height options.

Constructed from high-quality galvanised steel using hot-dip galvanisation (EN ISO 1461), this staircase delivers lasting corrosion resistance for both indoor and outdoor applications. The galvanised finish also provides a professional appearance suitable for commercial environments.

Key dimensions: each tread is 900mm wide and 240mm deep. Tread bars are 3mm thick and supporting rods 5mm thick, delivering solid strength across the stair length.

The staircase features adjustable height with a 5-section design. It can be extended by adding up to seven additional steps to achieve a maximum of 12 steps. With a step height of 30mm per step, the total height reaches 1000mm. The overall footprint remains compact with a width of 900mm and a depth of 1095mm. Step spacing is 170mm between treads.

All sets include essential fixings for straightforward assembly. With the provided components, you can complete installation efficiently and achieve a secure setup.

Safety is prioritised with non-slip treads for secure footing. The bottom section anchors to the floor while the top is fixed to a wall, providing stability during use. The design remains stable under varied workloads.

Product features:

• Weatherproof galvanised steel
• 5-section step design
• 900mm wide treads
• Maximum 12-step configuration
• Essential fixings included

Specifications:

• Colour: Silver
• Material: Galvanised steel
• Weight: 56 kg
• Step height: 30 mm (1.18 in)
• Total staircase height: 1000 mm (39.37 in)
• Width: 900 mm (35.4 in)
• Step depth: 240 mm (9.4 in)
• Staircase total depth: 1095 mm (43.1 in)
• Mesh size: 20 mm x 25 mm
• Step spacing: 170 mm (6.7 in)
• Tread bar thickness: 3 mm
• Tread rod thickness: 5 mm
• Upper plate: 4 mm thick, 100 mm height
• Holding Plate: 4 mm thick, 200 mm height
• Lower Plate: 4 mm thick, 300 mm height
• Maximum number of steps: 12
• Corrosion protection: Hot-dip galvanised (EN ISO 1461)
• Grating standard: DIN 24537

Box contents:

• 5 x 900mm W x 240mm D treads
• 2 x 100mm H upper plates
• 6 x 200mm holding plates
• 2 x 300mm H lower plates
• 1 x essential fixings kit
