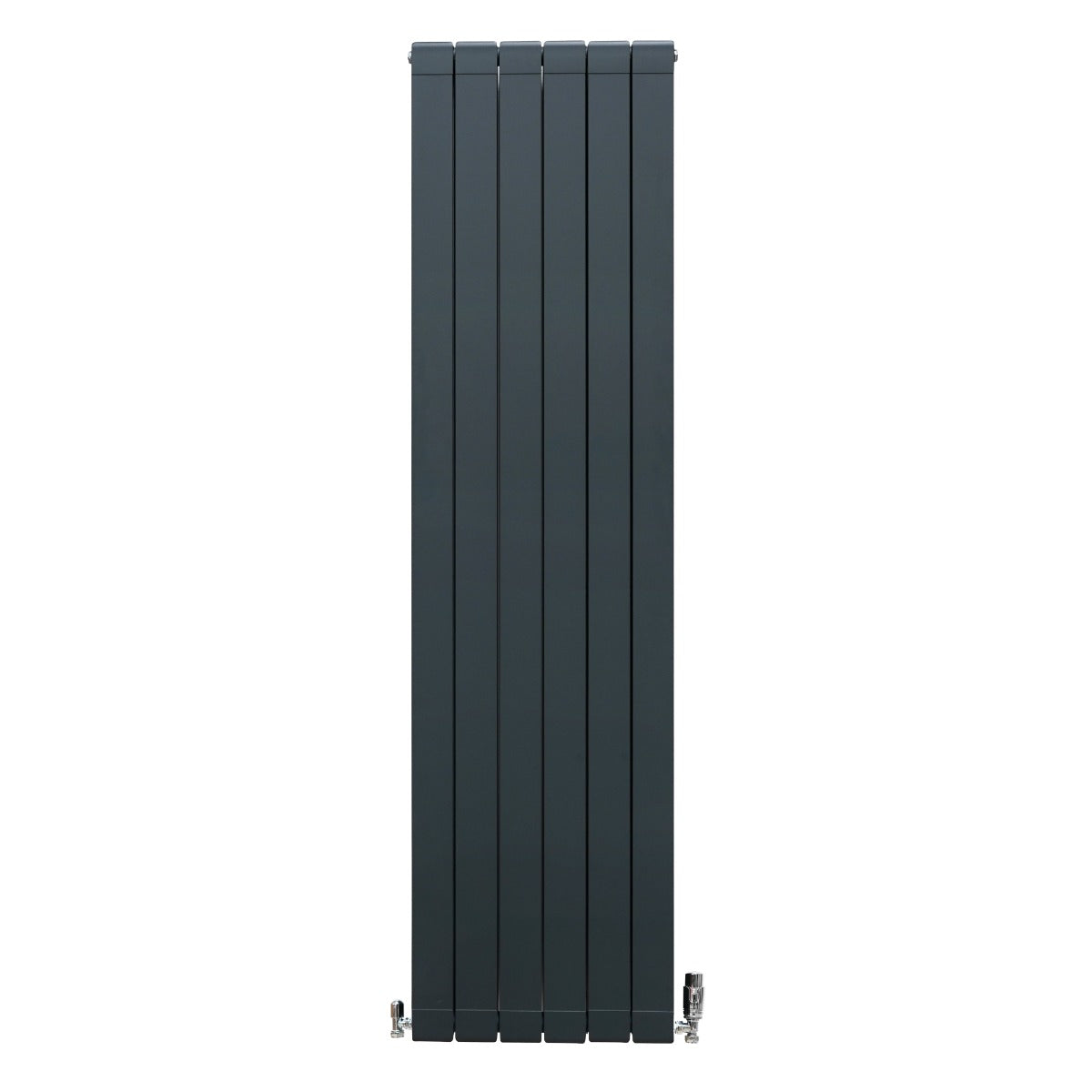

Aluminium Radiator with Valves – 1800 x 475 mm – Anthracite Grey

This aluminium radiator with a thermostatic valve set delivers efficient, balanced heating in a contemporary anthracite finish.

Constructed from 2.5mm aluminium, this radiator offers lightweight durability with precise heat distribution. It measures 1800mm in height and 475mm in width, with a 77mm depth suitable for a range of spaces. The triple-layer powder coating in anthracite provides a durable, low-maintenance finish.

Performance is strong, delivering a heat output of 6862 BTU at ΔT 50 and 8783 BTU at ΔT 60, helping to keep rooms comfortable with efficient heating.

The radiator includes secure brackets, a fixing kit, a flexible cleaning brush, and a chrome thermostatic valve set for straightforward installation and reliable control.

Valve and compatibility: standard 0.5" BSP inlet/outlet. The included chrome-finished thermostatic valve set is angled with a rotary control and a 6–28°C range. A lockshield valve is included to assist with efficient balancing. Compatible with UK and EU heating systems.

Design and finish: anthracite grey with a six-column panel configuration for a bold, contemporary presence.

Quality approvals: tested to BS EN 442 and ISO 9001:2015 standards; CE and UKCA certified.

Box contents:

• 1 x Aluminium Radiator
• 4 x Secure Brackets
• 1 x Practical Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Product Features:

• Premium 2.5mm Aluminium
• High BTU output: 8783 BTU
• Secure Brackets, Fixing Kit & Valves
• Cleaning Brush Included
• Triple-layer Powder Coating for durability

Radiator Specifications:

• Colour: Anthracite Grey
• Weight: 15.1kg
• Material: 2.5mm Aluminium
• Finish: Triple Layered Powder Coating
• Height: 1800mm
• Width: 475mm
• Radiator Depth: 77mm
• Depth With Bracket: 105mm
• Gap Between Panels: 50mm
• Individual Panel Size: 1800mm x 75mm
• Number Of Columns: 6
• BTU Rating @ ΔT 50: 6862
• BTU Rating @ ΔT 60: 8783
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO 9001:2015 Standards
• CE Certificate: CE & UKCA

Valve Specifications:

• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Style: Angled
• Control Style: Rotary Knob
• Type: Thermostatic
• Temperature Range: 6–28°C
• Maximum Bar Pressure: 12
• Maximum Flow Temperature: 100°C
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
