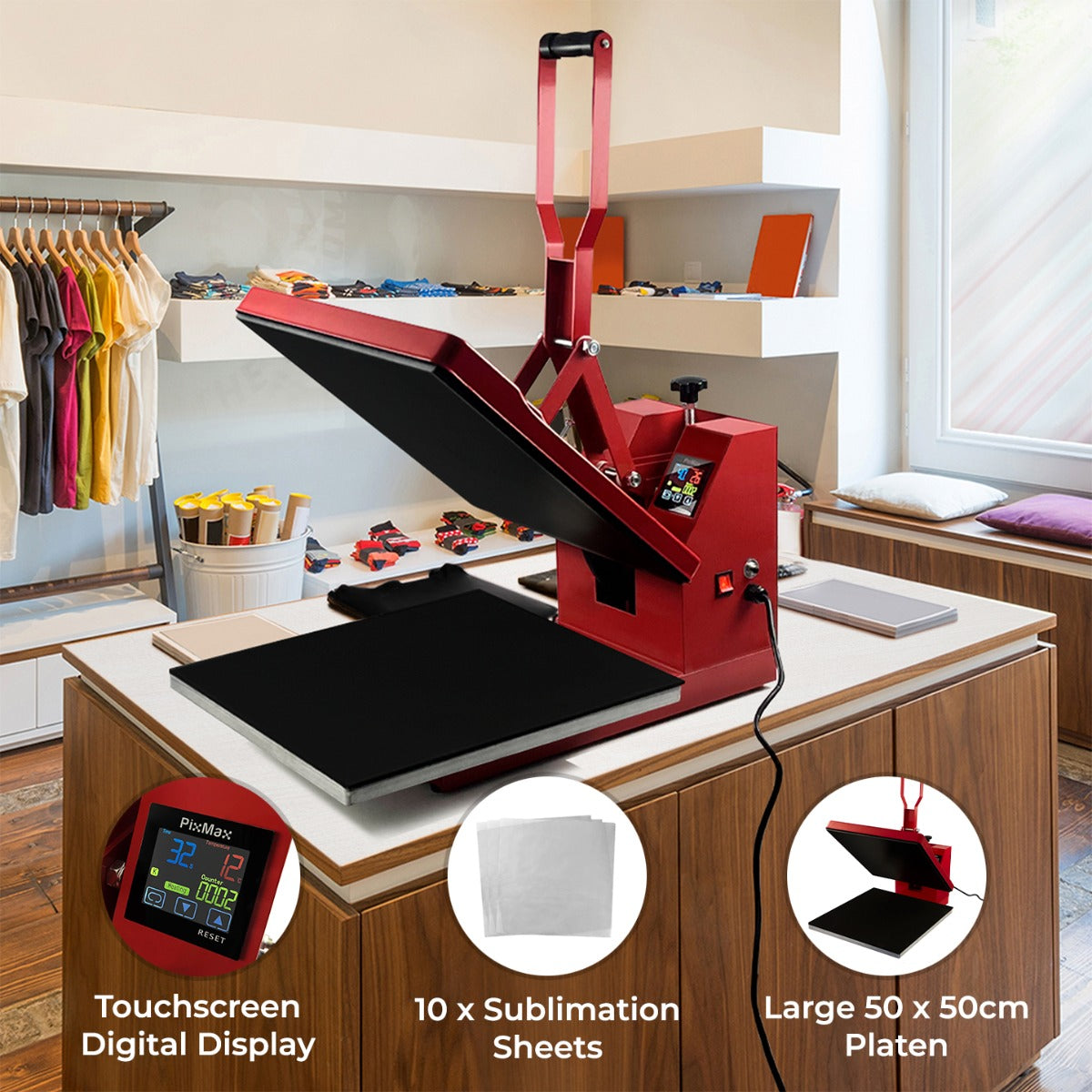

Clamshell Heat Press 50 x 50 cm

The 50 x 50 cm Clamshell Sublimation Heat Press from PixMax provides a large, flat transfer surface for sublimation and heat transfer projects, enabling bigger designs on a wide range of items.

Ideal for both DIY enthusiasts and those starting a business, this clam-style press opens fully to position items such as t-shirts, bags, phone cases, puzzles, mouse mats and more. It supports sublimation ink and heat transfer vinyl, offering versatile design possibilities. The package includes 10 sublimation sheets to get you started.

Operating is straightforward with three adjustable controls — time, temperature, and pressure. The accurate digital touchscreen display ensures consistent transfers and reliable settings.

Set temperatures from 0 to 250 C and press times from 0 to 999 seconds, with an audible alert when the cycle ends. The comfort grip handle lets you lower the platen, and the pressure is adjustable via a dedicated knob. The even heat distribution across the alloy platen helps ensure consistent results across the entire surface.

Although the 50 x 50 cm platen is large, the unit is built in a compact, powder-coated steel chassis for durability and long life. The red finish provides a bold appearance while protecting the frame from wear.

The clamshell design offers clear access to the entire transfer area. A 9 mm thick silicone pad on the lower platen provides a flat, even surface and the non-slip surface helps hold items in place during transfers.

Product Features:

• Large 50 x 50 cm Platen
• Even Heat Distribution
• Touchscreen Digital Display
• 0-999 Second Timer
• Operating Temperature Up To 250 C

Specifications:

• Colour: Red
• Material: Powder Coated Steel
• Weight: 32 kg
• Height: 390 mm (39 cm / 15.4")
• Width: 525 mm (52.5 cm / 20.7")
• Depth: 740 mm (74 cm / 29.1")
• Voltage: 220-240 V
• Current: 11 A
• Frequency: 50 Hz
• Power: 2.4 kW
• Circuit Breaker: 50 A
• Temperature Range: 0-250 C
• Pressing Time: 0-999 seconds
• Platen Dimensions: 50 x 50 cm
• Silicone Pad Thickness: 9 mm

Box Contents:

• 1 x 50 x 50 cm Clamshell Heat Press
• 10 x Sublimation Sheets
