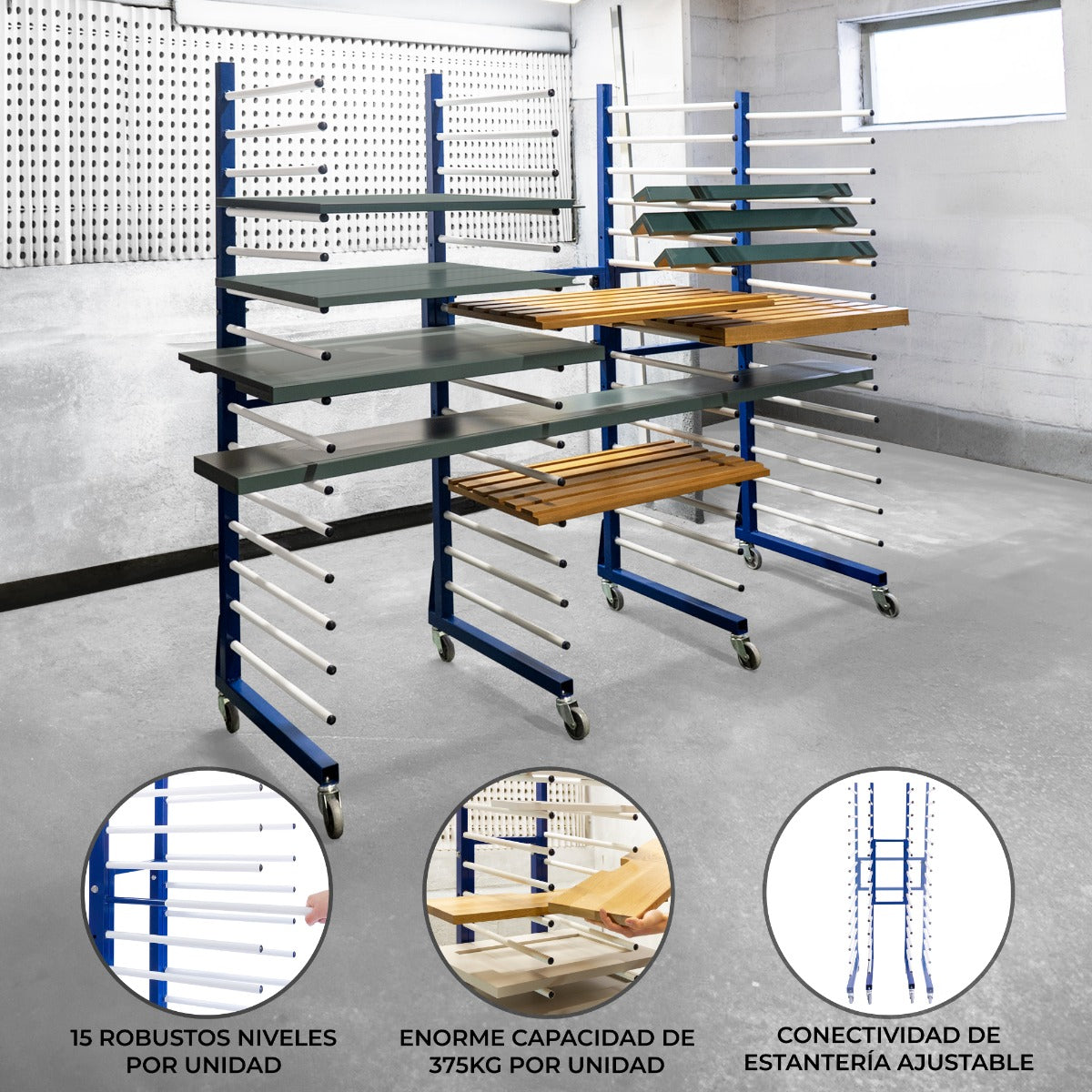

Combi Spray Drying Rack Trolley Set (2-Pack) with Connector

Enhance drying efficiency with this spray drying rack trolley set, comprising two trolleys and a 2‑way connector. Built for convenience, space efficiency, and flexible configuration to suit varied drying tasks.

The bundle offers multiple orientation and width options, delivering versatile setup possibilities. Use both trolleys independently, join them for extended capacity, or create a compact layout with the connector and a single leg from the second rack.

Each trolley provides 15 drying levels with a 25 kg capacity per level, offering ample space for painted items and organized drying in workshops or paint shops. The powder-coated steel frame delivers durability and a professional finish, with a total weight capacity of 375 kg.

The drying bars are 55 cm long with an 85 mm gap between bars to promote airflow and minimise contact between items. Each bar includes a removable plastic sleeve for easy cleaning and maintenance.

Width can be customised by fitting the 2‑way separator horizontally or vertically to create a narrower or wider drying area. The included connector ships with four hand bolts for quick, tool‑free attachment.

Four heavy‑duty, 360‑degree castor wheels provide smooth manoeuvrability and easy repositioning.

Upgrade your workspace with these spray drying rack trolleys designed to meet industry requirements and provide reliable, efficient drying.

Product Features:

• 15 Drying Layers Per Rack
• 25 kg Weight Capacity Per Layer
• 55 cm Drying Bars
• Adjustable Assembly & Trolley Connectivity
• 4 Heavy‑Duty 360° Castor Wheels

Drying Rack Specifications:

• Colour: Blue
• Material: Powder-Coated Steel
• Weight: 26.05 kg
• Weight Capacity Per Level: 25 kg
• Total Weight Capacity: 375 kg
• Height: 181.5 cm / 1.815 m / 71.5 in
• Minimum Rack Width: 35 cm
• Maximum Rack Width: 65 cm
• Depth: 59.3 cm
• Bar Length: 55 cm
• Gap Between Bars: 85 mm
• Number Of Layers: 15

2 Way Separator Specifications:

• Colour: Blue
• Material: Powder-Coated Steel
• Weight: 3.5 kg
• Height: 300 mm / 30 cm
• Width: 597 mm / 59.7 cm
• Depth: 38 mm / 3.8 cm
• Hand Bolt Length: 115 mm / 11.5 cm

Box Contents:

• 2 x Adaptable Spray Drying Rack Trolleys
• 1 x 2 Way Connector
• 4 x Secure Hand Bolts
