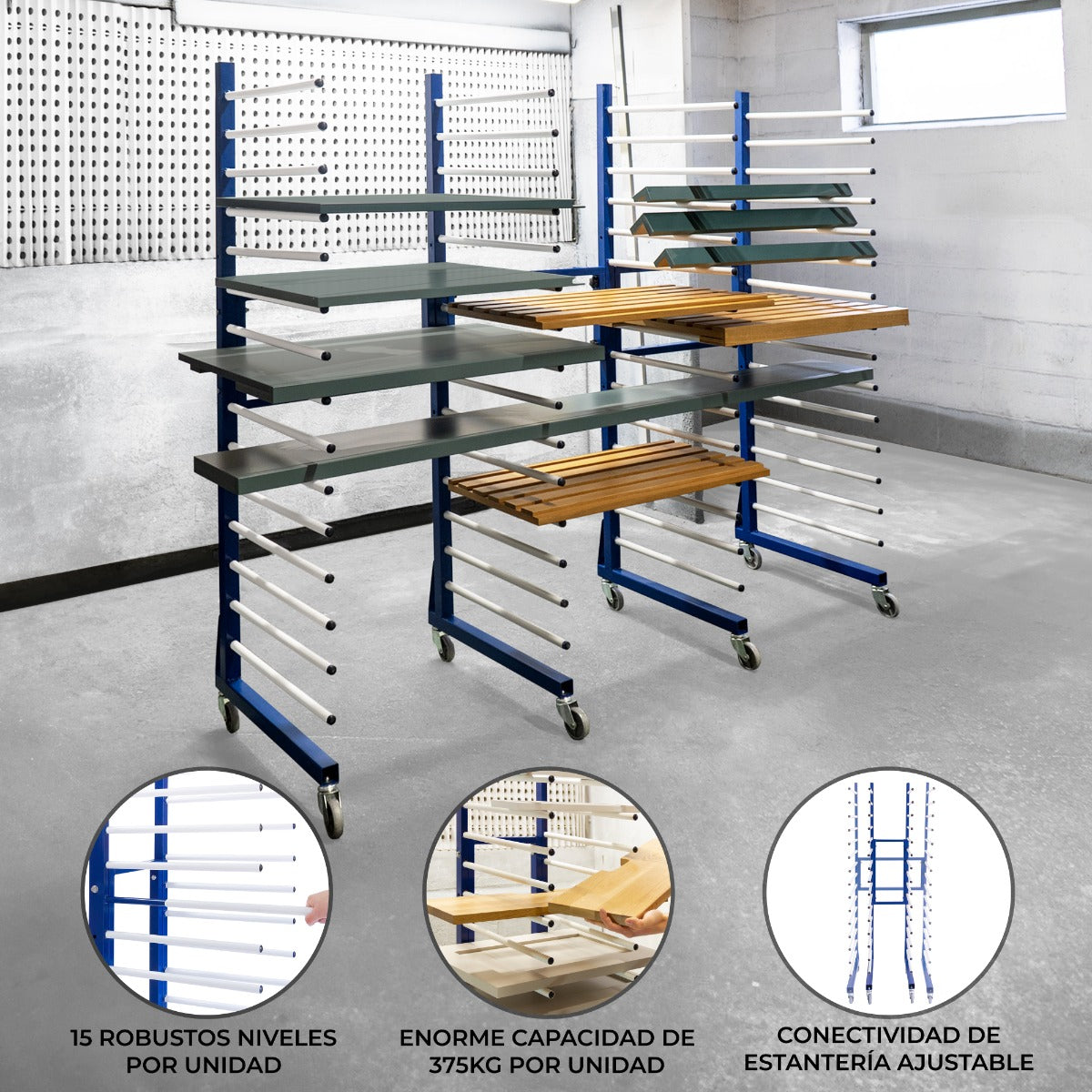

Combi Spray Drying Rack Trolley – Set of 3 with 2 Connectors

This spray drying rack trolley set brings together three adaptable drying racks and two 2-way connectors to deliver a flexible, space-saving drying solution for paints, coatings, and workshop use. The system supports a wide range of configurations to suit your workspace and workflow, from standalone racks to extended, connected setups.

Flexibility and configuration
- The bundle offers more than 50 orientation configurations and 18 width options.
- Racks can be used separately, joined for extended capacity, or configured in a compact layout using the connectors and a single leg from an additional rack.

Durable construction and capacity
- Powder-coated steel frames provide durability and a professional finish.
- Each trolley features 15 drying layers with a 25 kg capacity per layer, giving a per-rack total capacity of 375 kg.
- 55 cm long drying bars with 85 mm gaps promote airflow and minimize contact between items.
- Removable plastic sleeves on each bar simplify cleaning and maintenance.
- Four heavy-duty, 360-degree castors per trolley enable smooth, mobility and precise positioning.

Adjustability and connectivity
- Width can be adjusted through horizontal or vertical use of the 2-way separator, enabling narrow or wider drying spaces.
- Each additional connector includes four hand bolts for quick, tool-free attachment to the trolleys.

Dimensions and weights
- Colour: Blue; Material: Powder-coated steel
- Drying rack weight (per rack): 26.05 kg
- Drying rack capacity: 25 kg per level; total capacity per rack: 375 kg
- Height: 181.5 cm (1.8 m)
- Minimum rack width: 35 cm; Maximum rack width: 65 cm
- Depth: 59.3 cm
- Bar length: 55 cm
- Gap between bars: 85 mm
- Number of layers: 15

2‑Way separator specifications
- Colour: Blue; Material: Powder-coated steel
- Weight: 3.5 kg
- Height: 300 mm; Width: 597 mm; Depth: 38 mm
- Hand bolt length: 115 mm

Box contents
- 3 x Adaptable spray drying rack trolleys
- 2 x 2‑way connectors
- 8 x Secure hand bolts

This configuration provides a scalable, efficient drying solution tailored to the needs of paint shops and workshops.
