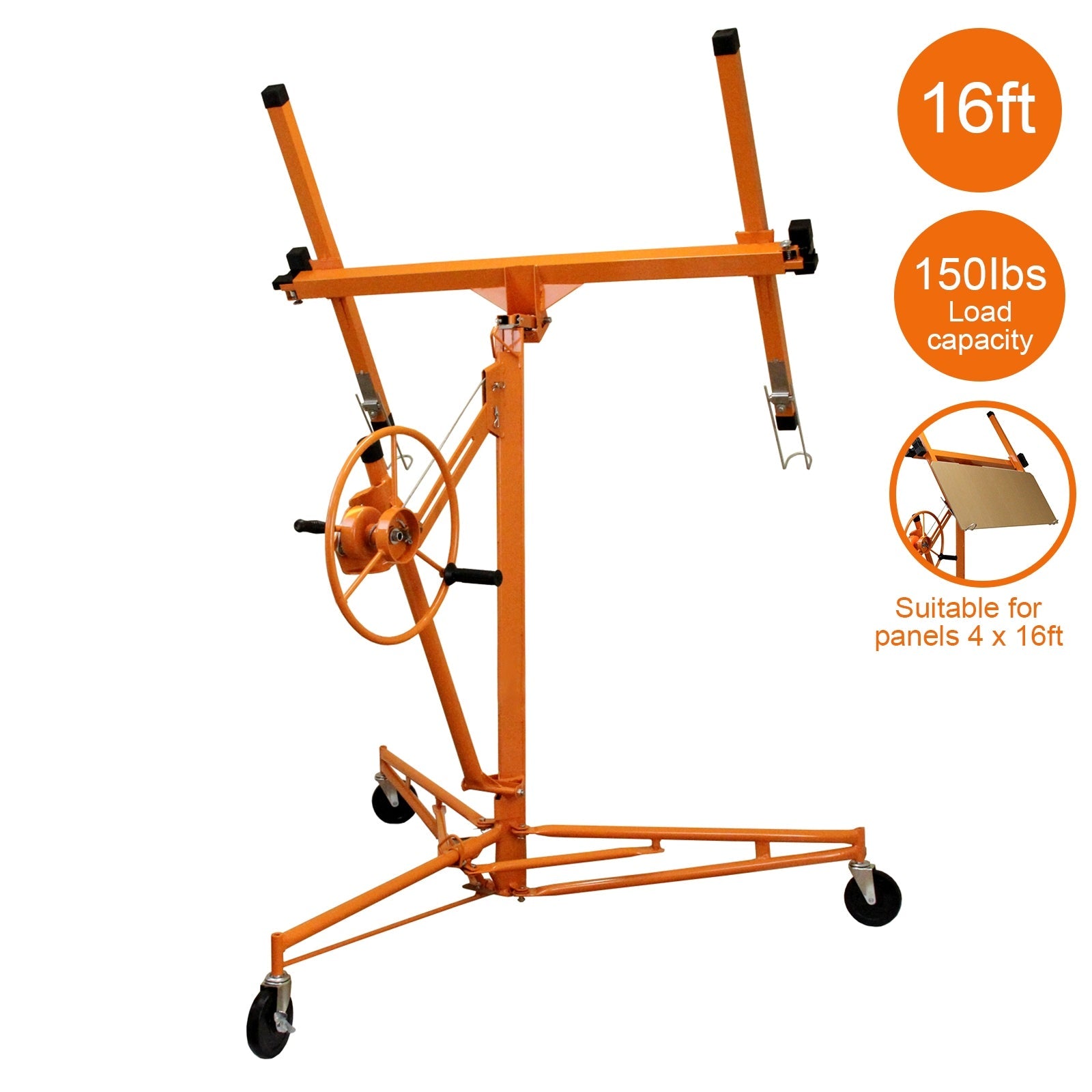

Drywall and Plasterboard Lifter Hoist – 16 ft Reach

The Drywall and Plasterboard Lifter Hoist by T-Mech offers a 16 ft reach to efficiently position drywall panels and plasterboard, enabling effective handling by a single operator.

The tilting mechanism accommodates work on walls, ceilings, and angled installations including sloped or vaulted surfaces, providing flexibility for various jobs.

Compatible with drywall panels from 4 ft to 16 ft in length, with a maximum load capacity of 68 kg (150 lb). Panels move smoothly on 100 mm (10 cm) swivel caster wheels with brakes for stable positioning.

The frame folds for easy transport and compact storage. When you’re ready to resume, simply unfold and get to work — without the need for tools.

Product Features:

• Heavy-duty 16ft Drywall Lifter Hoist by T-Mech
• Maximum load capacity of 68 kg (150 lb)
• Suitable for panels from 4 ft to 16 ft
• Tilting action for work at all angles
• 100 mm swivel caster wheels with brakes
• Foldable frame for easy assembly, transport and storage
• CE Certified product

Specifications:

• Weight: 38.72 kg
• Material: Steel
• Colour: Orange
• Finish: Powder coated
• Weight Capacity: 68 kg / 150 lb
• Wheel Size: 100 mm
• Min Board Size: 4 ft / 1.2 m / 48 in
• Max Board Size: 16 ft / 4.9 m / 192 in
• Min Height: 4.8 ft / 1.46 m / 57.5 in
• Max Height: 16 ft / 4.9 m / 192 in
• Width: 142 cm / 1.4 m / 56 in
• Depth: 122 cm / 1.2 m / 48 in
