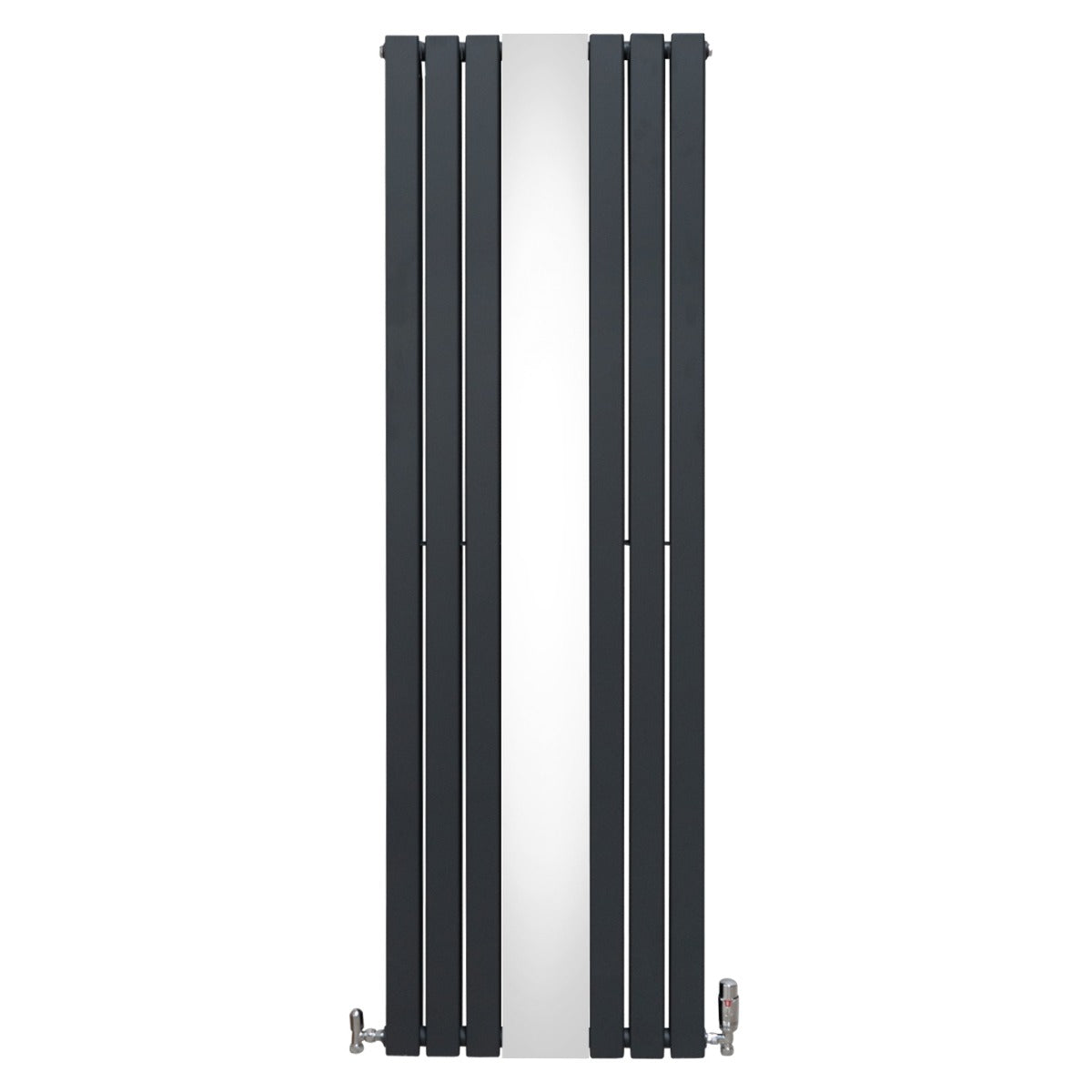

Flat Mirror Radiator with Valves – 1800 x 565 mm – Anthracite Grey

Enhance warmth and style with a flat panel mirror radiator finished in anthracite grey. This vertical radiator features a central integrated mirror and a thermostatic chrome valve set for a discreet, functional heating solution.

Construction and design: Made from premium 1.5 mm carbon steel and finished with a triple-layer powder coating for durability and a contemporary look. Measuring 1800 mm tall by 565 mm wide, it fits a range of spaces with ease. The six‑column design uses 60 mm diameter tubes to deliver robust heat output.

Mirror and safety: The central mirror adds practical value by reflecting light and enlarging space while remaining designed for daily use with safety considerations in mind. A sturdy back plate provides additional support to maintain structural integrity over time.

Fittings and compatibility: Includes a complete thermostatic chrome valve set. Standard 0.5" BSP inlet/outlet compatibility offers flexibility in valve selection to suit your preference and installation.

Controls and efficiency: Angled thermostatic valves with rotary control provide precise temperature adjustment within a 6–28°C range, and lockshield functionality helps regulate water flow for efficient performance.

Box contents: 1 x flat panel mirror radiator, 4 x secure brackets, 1 x fixing kit, 1 x flexible cleaning brush, 1 x thermostatic valve set.

Product features

• Premium 1.5 mm carbon steel
• BTU output up to 8092 (at 60°C)
• 6-column design with 60 mm tubes
• Triple-layer powder coating for durability
• Integrated mirror (1800 mm x 145 mm, 5 mm thick)
• Back support plate for added stability
• CE marking and BS EN 442 compliance with ISO 9001:2015 quality framework
• Inlets/outlets: standard 0.5" BSP
• Includes chrome thermostatic valve set

Specifications

• Colour: Anthracite Grey
• Weight: 48.4 kg
• Material: 1.5 mm carbon steel
• Finish: Triple-layer powder coating
• Height: 1800 mm
• Width: 565 mm
• Radiator depth: 58 mm
• Depth with brackets: 93 mm
• Tube diameter: 60 mm
• Number of columns: 6
• BTU rating @ 50°C: 6372
• BTU rating @ 60°C: 8092
• Mirror dimensions: 1800 mm x 145 mm
• Mirror thickness: 5 mm
• Inlet/outlet size: 0.5" BSP
• Compatibility: UK & EU heating systems
• Standards: BS EN 442; ISO 9001:2015
• Markings: CE & UKCA

Valve specifications

• Material: Brass
• Finish: Polished chrome
• Weight: 0.9 kg
• Style: Angled
• Control style: Rotary knob
• Type: Thermostatic
• Temperature range: 6–28°C
• Maximum operating pressure: 12 bar
• Maximum flow temperature: 100°C
• Nominal flow rate: 2.8 L/min
• Connection: 1/2" x 15 mm
