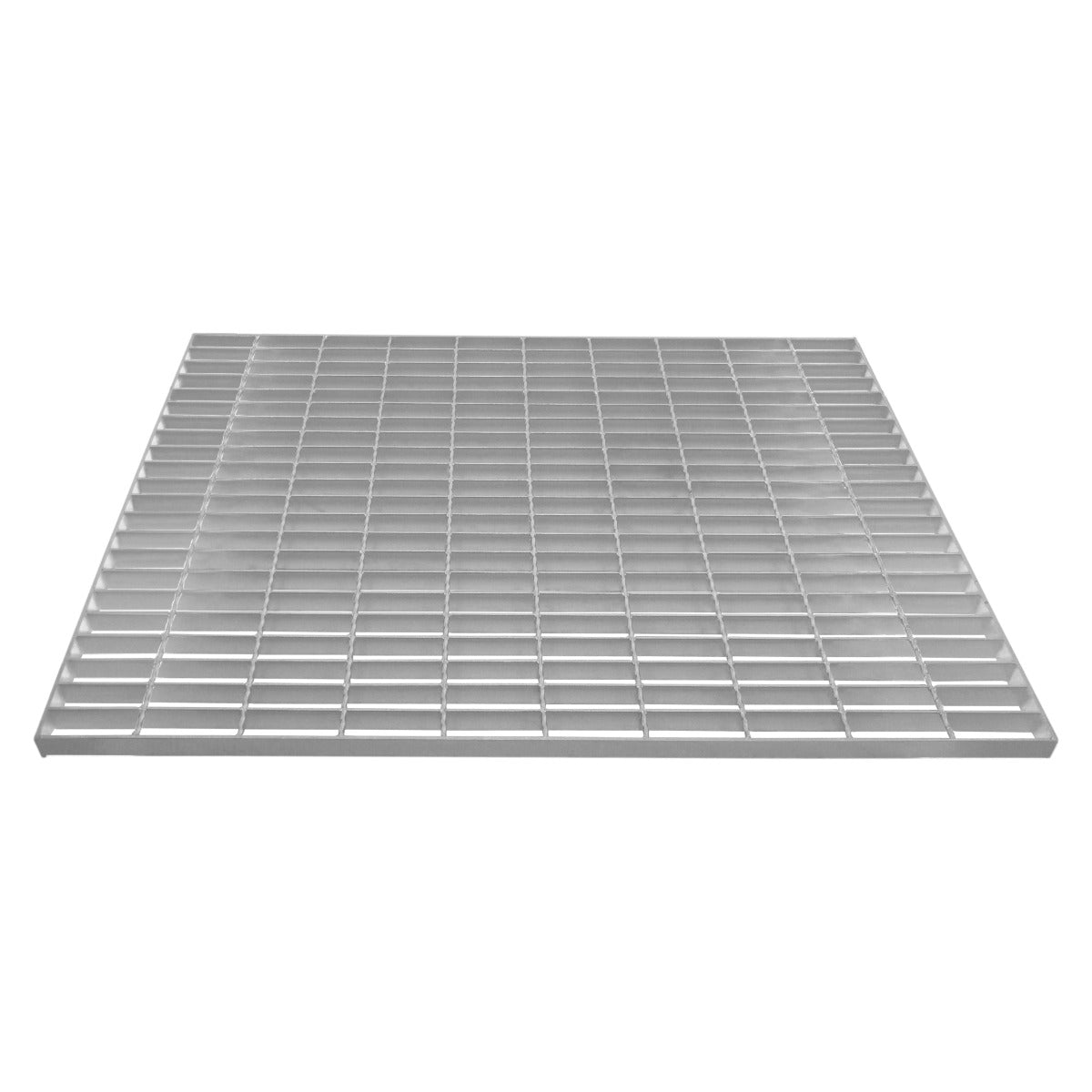

Galvanised Grating 1000 mm x 800 mm

Description

Enhance safety and efficiency in industrial and commercial spaces with this heavy-duty galvanised grating measuring 1000 mm by 800 mm. The open-grid design provides high load-bearing capacity while allowing effective drainage of liquids, debris, and other materials. Suitable for indoor and outdoor use, it withstands heavy foot traffic and demanding conditions.

Crafted from hot-dip galvanised steel, this grating delivers excellent corrosion resistance and reliable long-term performance. The 4 mm thick metal construction supports a load rating of 800 kg, while the zinc coating (above 260 g/m2) offers weatherproof protection in accordance with EN ISO 1461. The grid pattern with 32 mm x 100 mm openings provides a balanced combination of strength and visibility, contributing to a clean, professional appearance.

Its modular, lightweight design allows for straightforward installation and customization for walkways, elevated platforms, or stair treads. Suitable for a range of settings, this galvanised grating combines practical functionality with a modern industrial aesthetic.

Product Features:
- Heavy duty galvanised steel
- Weatherproof zinc coating
- Large 1000 x 800 mm grid
- 800 kg load bearing capacity
- 4 mm thick metal
- Grid hole dimensions: 32 mm x 100 mm
- Weight: 21.5 kg
- Height: 30 mm

Specifications:
- Colour: Silver
- Material: Steel
- Zinc coating: >260 g/m2
- Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
- Grating standard: DIN 24537
- Weight: 21.5 kg
- Height: 30 mm
- Width: 1000 mm
- Depth: 800 mm
- Metal thickness: 4 mm
- Load capacity: 800 kg
- Grid hole dimensions: 32 mm x 100 mm

Box Contents:
- 1 x Heavy Duty Galvanised Grating
