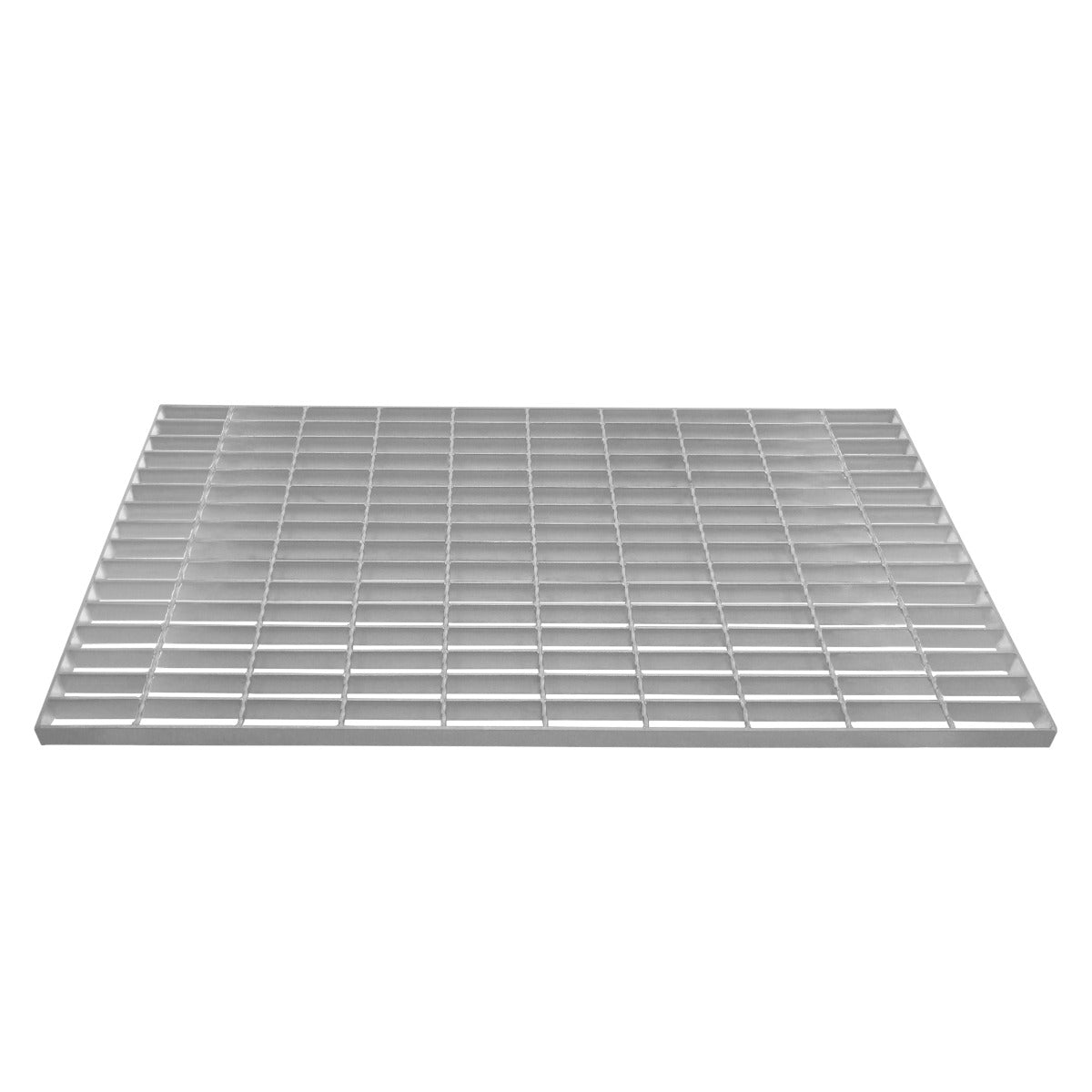

Galvanised Grating 1000mm x 500mm

Enhance safety and efficiency in industrial or commercial spaces with this heavy-duty galvanised steel grating, sized 1000 mm x 500 mm.

Designed with a pattern of evenly spaced, sturdy bars, this grating offers robust load-bearing capacity while enabling drainage of liquids, debris, and other materials. It is built to withstand high foot traffic and demanding conditions, making it suitable for a wide range of industrial and commercial environments.

Made from hot-dipped galvanised steel, it provides excellent corrosion resistance for indoor and outdoor use and tolerates harsh weather when installed as flooring, walkways, or platforms. With a 4 mm thick metal structure and a load capacity of 500 kg, this grating delivers reliable stability and durability.

In addition to practicality, the galvanised steel grating presents a clean, professional appearance with its straight lines and modern finish, enhancing industrial and commercial spaces.

Installation is straightforward and adaptable, with a modular design that allows easy customization to create walkways, elevated platforms, or stair treads to suit site requirements. Its lightweight nature supports handling and installation while maintaining structural integrity.

Whether you need a durable flooring option for walkways, platforms, or drainage applications, this galvanised grating provides a dependable solution.

Product Features:

• Heavy-duty galvanised steel
• Weatherproof zinc coating
• Grid openings: 32 mm x 100 mm
• Load-bearing capacity: 500 kg
• Metal thickness: 4 mm

Specifications:

• Colour: Silver
• Material: Steel
• Zinc coating: Above 260 g/m2
• Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
• Grating standard: DIN 24537
• Weight: 14 kg
• Height: 30 mm
• Width: 1000 mm
• Depth: 500 mm
• Metal Thickness: 4 mm
• Load Capacity: 500 kg
• Grid Hole Dimensions: 32 mm x 100 mm

Box Contents:

• 1 x Heavy Duty Galvanised Grating
