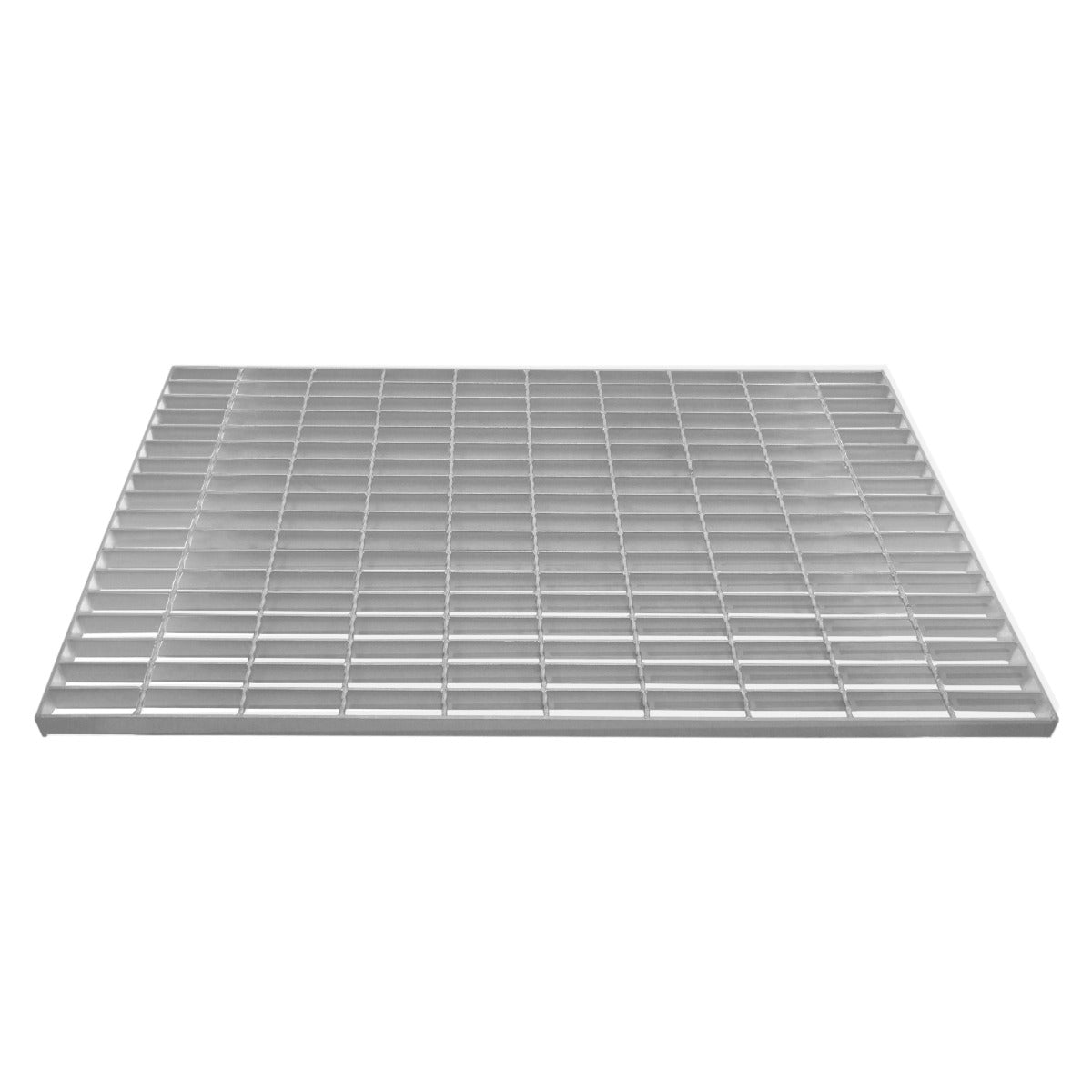

Galvanised Grating 1000mm x 600mm

Enhance safety and efficiency in industrial and commercial spaces with this heavy-duty galvanised steel grating, measuring 1000 mm x 600 mm.

The grating’s design features a matrix of evenly spaced, robust bars that deliver high load-bearing capacity while allowing effective drainage of liquids, debris, and other materials. Built to withstand heavy foot traffic and demanding conditions, it serves as a versatile flooring solution for walkways, elevated platforms, and stair treads.

Manufactured from hot-dip galvanised steel for superior corrosion resistance, it is suitable for indoor and outdoor use and can withstand harsh weather. The 4 mm thick metal and a load capacity of 600 kg provide reliable stability and durability.

In addition to its practicality, the galvanised finish offers a clean, professional appearance suitable for industrial and commercial environments.

Installation is straightforward and versatile. The modular design allows easy customization and seamless integration into various settings. Lightweight by design, it remains strong enough to maintain structural integrity during handling and installation.

Whether you need a durable solution for walkways, platforms, or drainage applications, this galvanised grating delivers dependable performance.

Product Features:

• Heavy Duty Galvanised Steel
• Weatherproof Zinc Coating
• Large 1000 mm x 600 mm Mesh Grid
• 600 kg Load Bearing Capacity
• Sturdy 4 mm Thick Metal

Specifications:

• Colour: Silver
• Material: Steel
• Zinc Coating: >260 g/m²
• Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
• Grating standard: DIN 24537
• Weight: 17 kg
• Height: 30 mm
• Width: 1000 mm
• Depth: 600 mm
• Metal Thickness: 4 mm
• Load Capacity: 600 kg
• Grid Hole Dimensions: 32 mm x 100 mm

Box Contents:

• 1 x Heavy Duty Galvanised Grating
