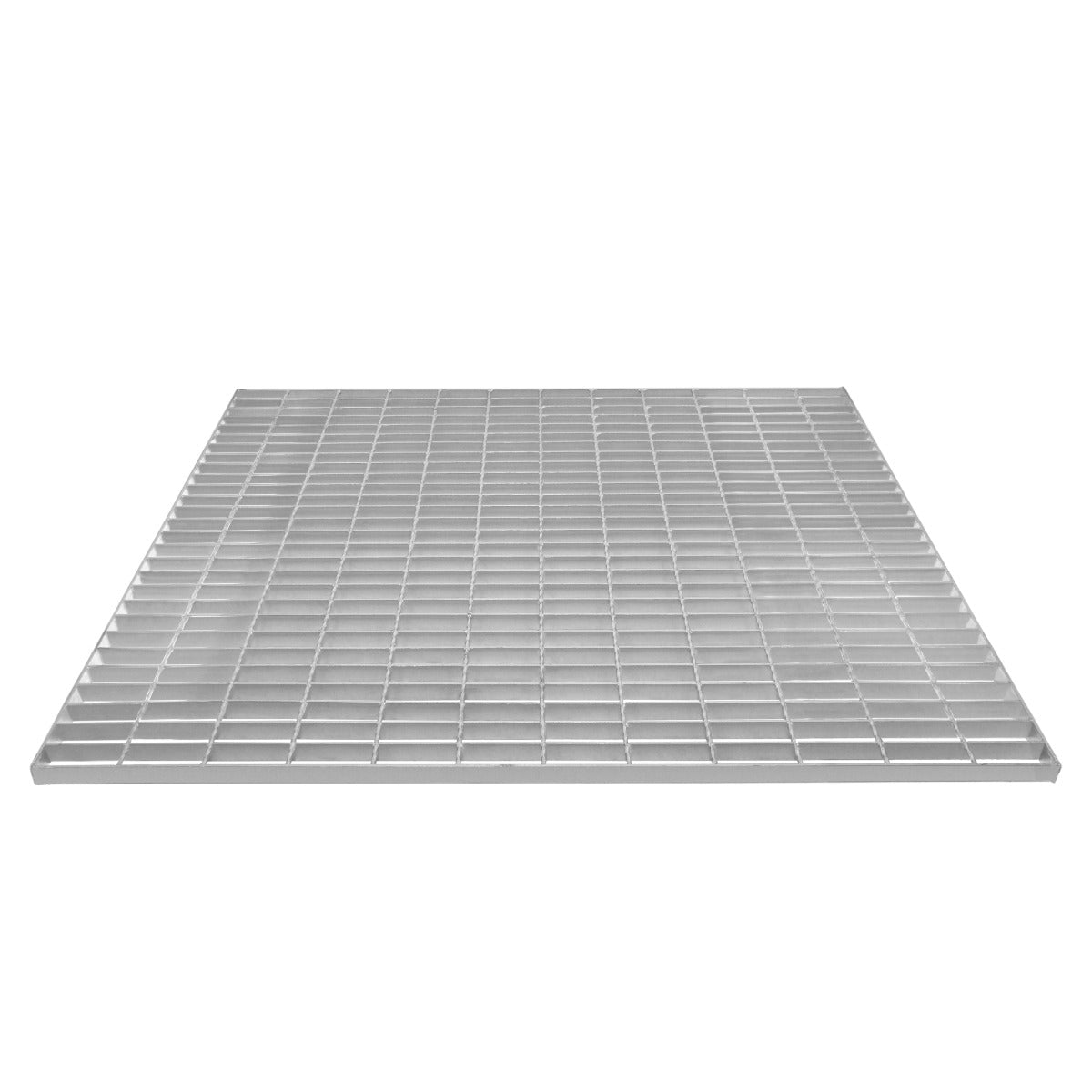

Galvanised Grating 1200mm x 1000mm

Enhance safety and functionality in industrial and commercial spaces with the Galvanised Grating 1200mm x 1000mm. This heavy-duty grate provides a robust walking surface while enabling efficient drainage of liquids and debris.

Designed with a precise grid of sturdy bars, it delivers excellent load-bearing capacity under high foot traffic. The 4 mm thick steel construction and corrosion-resistant hot-dip galvanised coating ensure reliable performance in indoor and outdoor environments, including challenging weather conditions.

The galvanised finish offers a clean, professional appearance that complements industrial and commercial interiors. Its modular design supports flexible configuration for walkways, elevated platforms, stair treads, or drainage runs, and installation is straightforward in a range of settings.

Key advantages include durable performance, long service life, and straightforward handling during installation. The grating maintains structural integrity under load while allowing drainage and debris passage.

Product Features:

• Heavy-duty galvanised steel
• Weatherproof zinc coating
• Overall size: 1200 mm x 1000 mm
• Load bearing capacity: 1200 kg
• Bar thickness: 4 mm

Specifications:

• Colour: Silver
• Material: Steel
• Zinc coating: Above 260 g/m2
• Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
• Grating standard: DIN 24537
• Weight: 32 kg
• Height (grating profile): 30 mm
• Width: 1200 mm
• Depth (length): 1000 mm
• Metal thickness: 4 mm
• Load capacity: 1200 kg
• Grid hole dimensions: 32 mm x 100 mm

Box Contents:

• 1 x Heavy Duty Galvanised Grating
