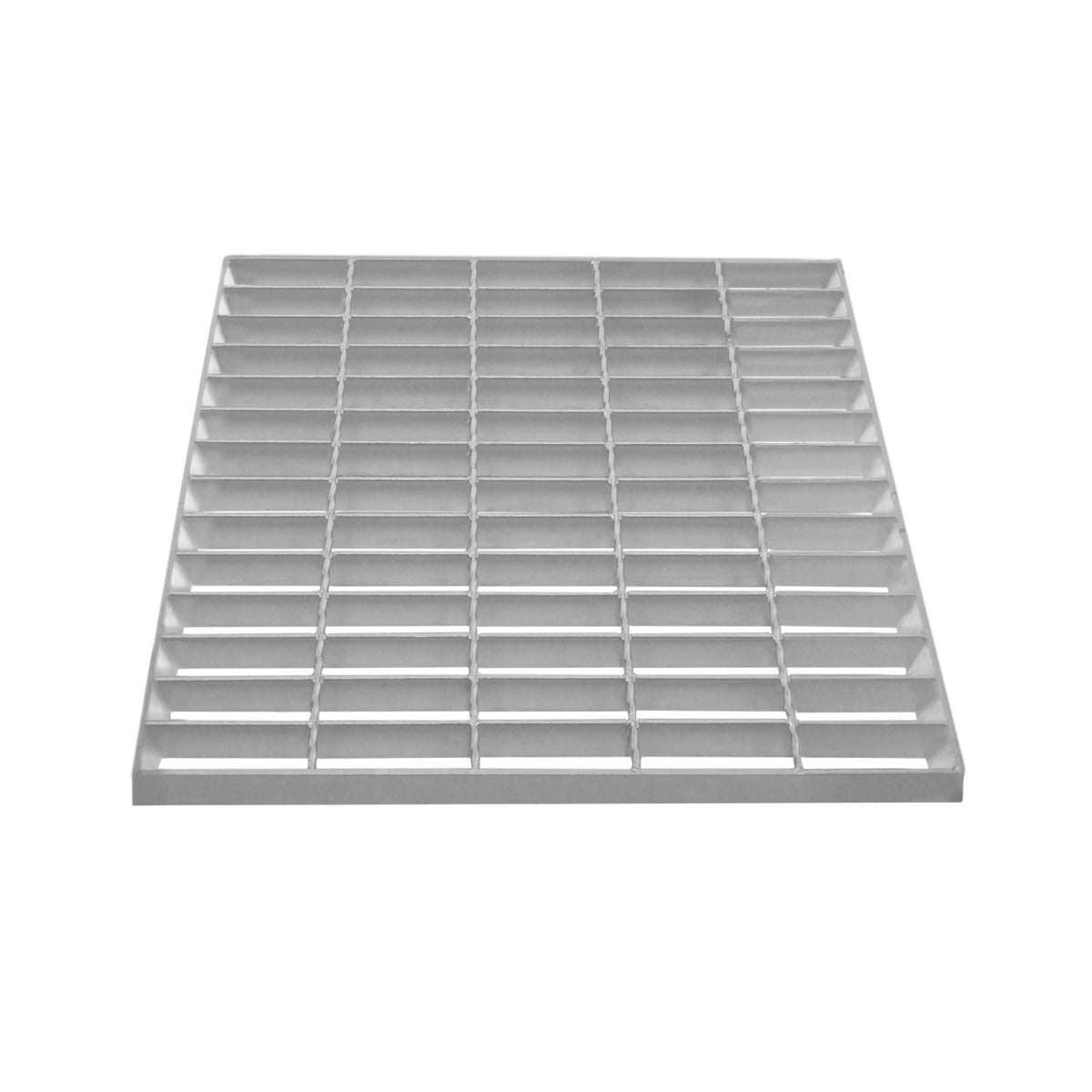

Galvanised Grating 500mm x 500mm

Enhance safety and efficiency in industrial and commercial spaces with this heavy-duty galvanised steel grating (500mm x 500mm).

The robust design features a grid of evenly spaced bars that provide strong load-bearing performance while enabling efficient drainage of liquids and debris. The open mesh helps maintain dry, slip-resistant surfaces in areas with high foot traffic and challenging conditions.

Manufactured from hot-dip galvanised steel, this grating offers excellent corrosion resistance and is suitable for indoor and outdoor use. With a 4mm thick construction, it delivers durability and stability, rated with a load capacity of 250 kg.

In addition to practicality, the zinc-coated finish presents a clean, professional appearance that complements industrial and commercial spaces.

Installation is straightforward and versatile. The modular design allows easy customization to create walkways, elevated platforms, or stair treads that fit your site requirements. Its lightweight construction aids handling and transportation while maintaining structural integrity.

Whether you need a reliable flooring option for walkways, platforms, or drainage systems, this galvanised grating provides a suitable solution.

Product Features:

• Heavy Duty Galvanised Steel
• Weatherproof Zinc Coating
• Large 50cm x 50cm Mesh Grid
• 250kg Load Bearing Capacity
• Sturdy 4mm Thick Metal

Specifications:

• Colour: Silver
• Material: Steel
• Zinc Coating: Above 260 g/m2
• Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
• Grating standard: DIN 24537
• Weight: 7 kg
• Height: 30 mm
• Width: 500 mm
• Depth: 500 mm
• Metal Thickness: 4 mm
• Load Capacity: 250 kg
• Grid Hole Dimensions: 32 mm x 100 mm

Box Contents:

• 1 x Heavy Duty Galvanised Grating
