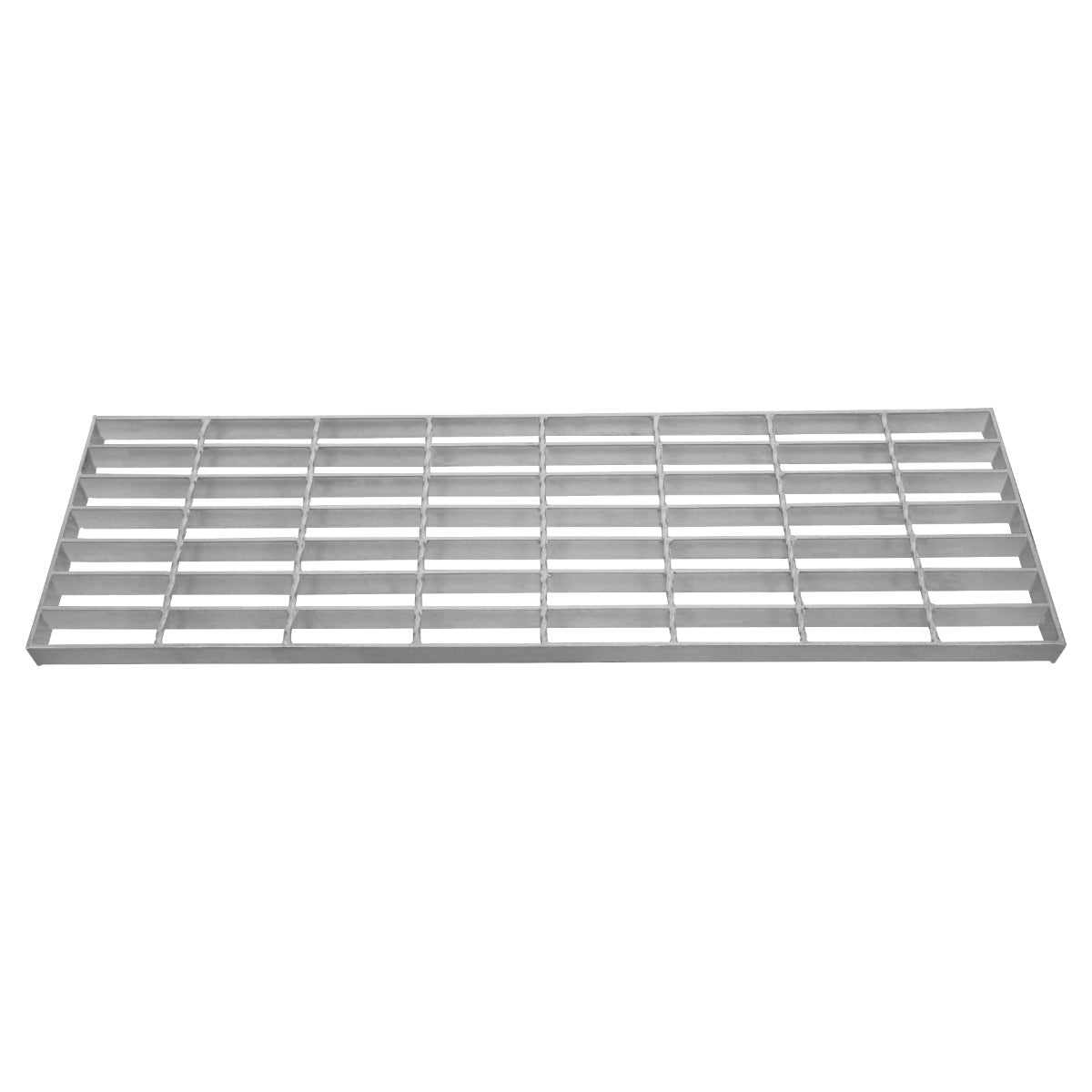

Galvanised Grating 800 mm x 240 mm

Enhance safety and functionality in industrial and commercial spaces with this heavy-duty galvanised steel grating. Measuring 800 mm wide by 240 mm deep, the grating features a robust pattern of evenly spaced bars that provides strong load-bearing performance while enabling efficient drainage of liquids and debris. It is designed to withstand high foot traffic and challenging conditions, making it suitable for walkways, platforms, and drainage applications.

Manufactured from hot-dipped galvanised steel, this grating offers excellent corrosion resistance and is suitable for indoor and outdoor use, including harsh weather environments. The 4 mm thick metal and a maximum load capacity of 192 kg deliver reliable stability and durability.

In addition to its practicality, the zinc-coated steel grating has a clean, professional appearance. Its straight lines and contemporary look contribute to the visual appeal of industrial and commercial spaces.

Installation is straightforward and versatile. The modular design allows easy customization to create walkways, elevated platforms, or stair treads that fit your requirements. Its relatively light weight also simplifies handling and transportation without compromising strength.

Whether you need a reliable flooring option for walkways, platforms, or drainage systems, this galvanised grating is a suitable choice.

Product Features:

• Heavy-duty galvanised steel
• Weatherproof zinc coating (>260 g/m2)
• Mesh grid size: 800 mm x 240 mm
• Load bearing capacity: 192 kg
• Sturdy 4 mm thick metal

Specifications:

• Colour: Silver
• Material: Steel
• Zinc coating: >260 g/m2
• Coating standard: Hot Dip Galvanised (EN ISO 1461)
• Grating standard: DIN 24537
• Weight: 6 kg
• Height: 30 mm (1.18 in)
• Width: 800 mm (31.5 in)
• Depth: 240 mm (9.4 in)
• Metal thickness: 4 mm
• Load capacity: 192 kg
• Grid hole dimensions: 32 mm x 100 mm

Box Contents:

• 1 x Heavy Duty Galvanised Grating
