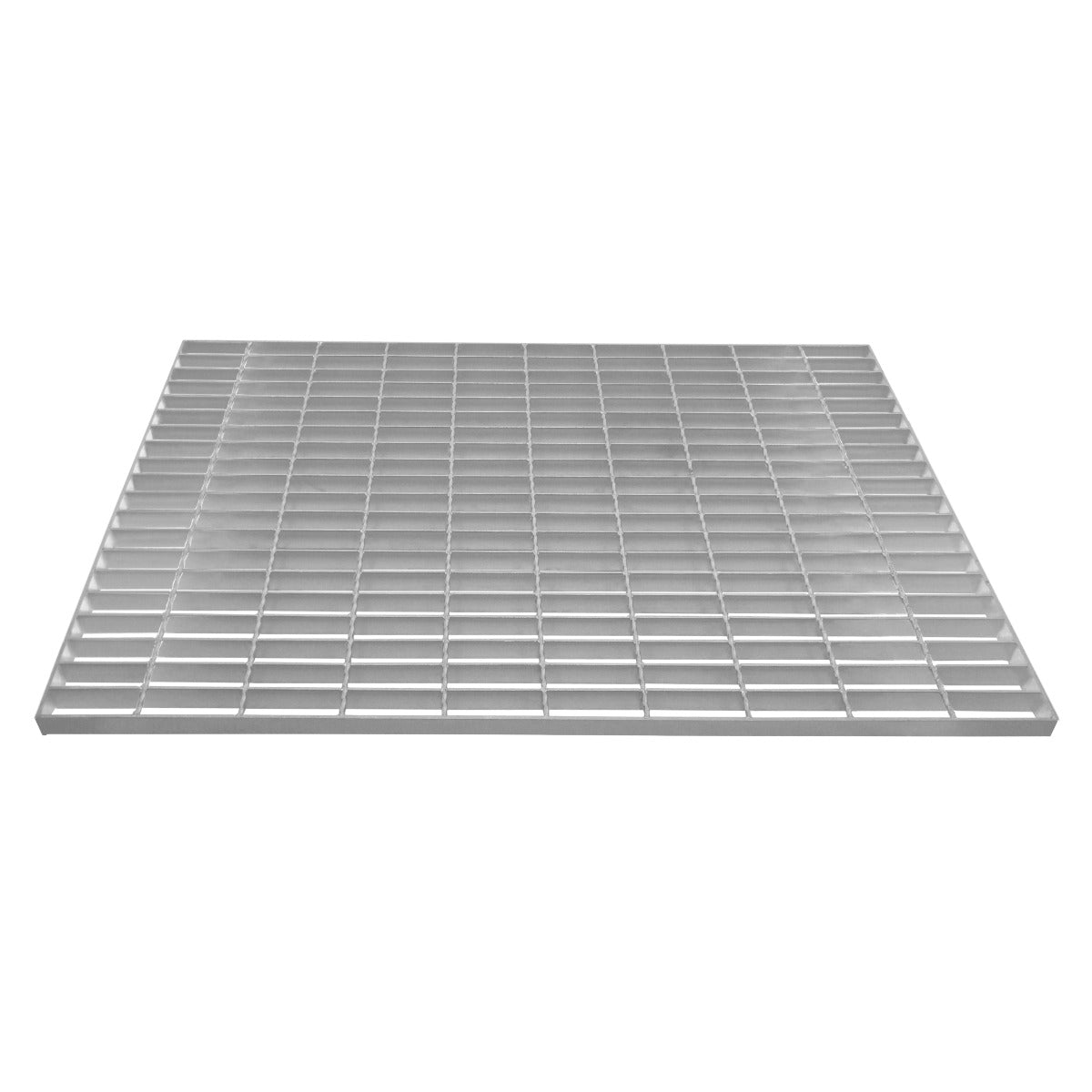

Galvanised Steel Grating 1000mm x 700mm

Enhance safety and functionality in industrial and commercial spaces with this heavy-duty galvanised steel grating. Sized at 1000 mm x 700 mm with a 4 mm thick profile, it delivers robust load-bearing performance while enabling efficient drainage.

Designed with a grid of precisely spaced bars, the grating supports heavy foot traffic and provides reliable drainage of liquids and debris. Built to withstand demanding environments, it is suitable for walkways, platforms, drainage covers, and other flooring applications.

Made from hot-dip galvanised steel, this grating offers superior corrosion resistance for indoor and outdoor use. The coating complies with EN ISO 1461 standards, featuring a zinc coating above 260 g/m2 to ensure long-term durability. The 4 mm thick bars and overall construction deliver a high load capacity of 700 kg.

In addition to practicality, the galvanised finish presents a clean, professional appearance suitable for industrial and commercial settings. The modular design enables versatile installation and straightforward customization to create walkways, elevated platforms, or stair treads. Its relatively light weight aids handling and transportation while maintaining structural integrity.

Whether you need a durable flooring solution for walkways, platforms, or drainage systems, this galvanised grating delivers reliable performance.

Product Features:

• Heavy-duty galvanised steel
• Weatherproof zinc coating
• Large 1000 mm x 700 mm mesh grid
• 4 mm metal thickness
• Load capacity up to 700 kg

Specifications:

• Colour: Silver
• Material: Steel
• Coating: Hot-dip galvanised; zinc coating above 260 g/m2
• Corrosion protection: EN ISO 1461 compliant
• Grating standard: DIN 24537
• Weight: 19.5 kg
• Height: 30 mm
• Width: 1000 mm
• Depth: 700 mm
• Metal thickness: 4 mm
• Load capacity: 700 kg
• Grid hole dimensions: 32 mm x 100 mm

Box contents:

• 1 x Heavy Duty Galvanised Grating
