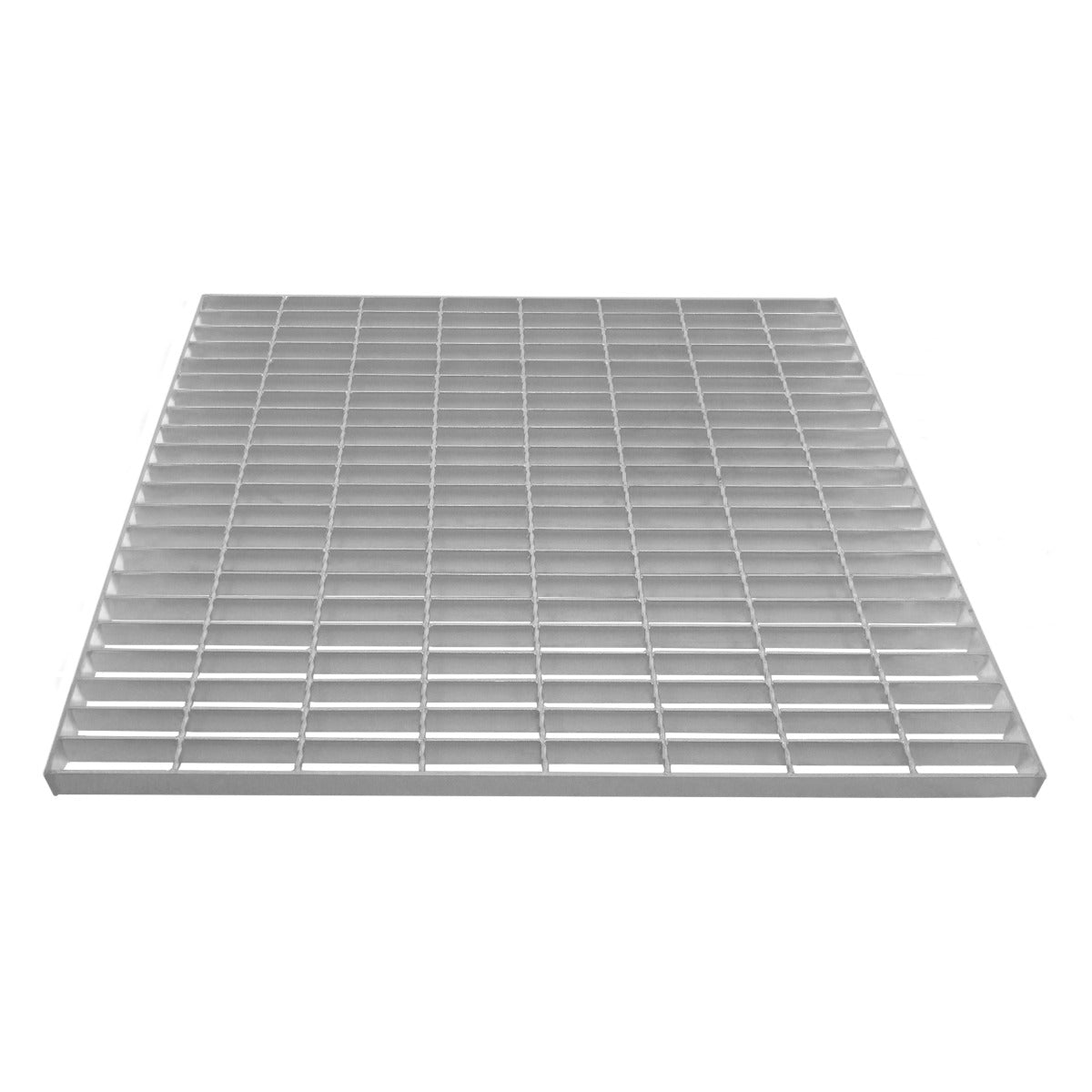

Galvanised Steel Grating 800 mm x 800 mm

This heavy-duty galvanised steel grating provides a durable, slip-resistant flooring solution for industrial and commercial spaces. Measuring 800 mm x 800 mm, it is suitable for walkways, platforms, and drainage applications.

The grating features a grid of robust bars with precise spacing, delivering high load-bearing capacity while enabling efficient drainage of liquids, debris, and other materials. Constructed from hot-dip galvanised steel, it offers excellent corrosion resistance for indoor and outdoor use and stands up to harsh conditions. The 4 mm-thick metal profile contributes to stability, with a load capacity of 640 kg.

In addition to its practicality, the galvanised finish presents a clean, professional appearance that enhances industrial aesthetics.

Installation is straightforward and adaptable. Its modular design allows easy sizing and configuration to create walkways, elevated platforms, or stair treads. The lightweight nature of the grating supports easier handling and installation without sacrificing structural integrity.

Product features:
- Heavy-duty galvanised steel
- Weatherproof zinc coating
- Large 80 cm x 80 cm mesh grid
- 640 kg load bearing capacity
- 4 mm thick steel

Specifications:
- Colour: Silver
- Material: Steel
- Zinc coating: > 260 g/m2
- Corrosion protection: Hot Dip Galvanised (EN ISO 1461)
- Grating standard: DIN 24537
- Weight: 17 kg
- Height: 30 mm (1.2 in)
- Width: 800 mm (31.5 in)
- Depth: 800 mm (31.5 in)
- Metal thickness: 4 mm
- Load capacity: 640 kg
- Grid hole dimensions: 32 mm x 100 mm

Box contents:
- 1 x Heavy Duty Galvanised Grating
