Hydraulic Positioning Skates – 4-Pack

Effortless vehicle and equipment positioning with a four-pack of hydraulic positioning skates. Engineered for strength and precision, these skates are ideal for garages, workshops, and industrial environments where mobility and control are essential.

Each skate offers a weight capacity of 680 kg (1,500 lb), enabling easy lifting and maneuvering of heavy loads. The foot-operated hydraulic system reduces strain and provides full control; a quick press of the pedal raises the load up to 305 mm (12 in).

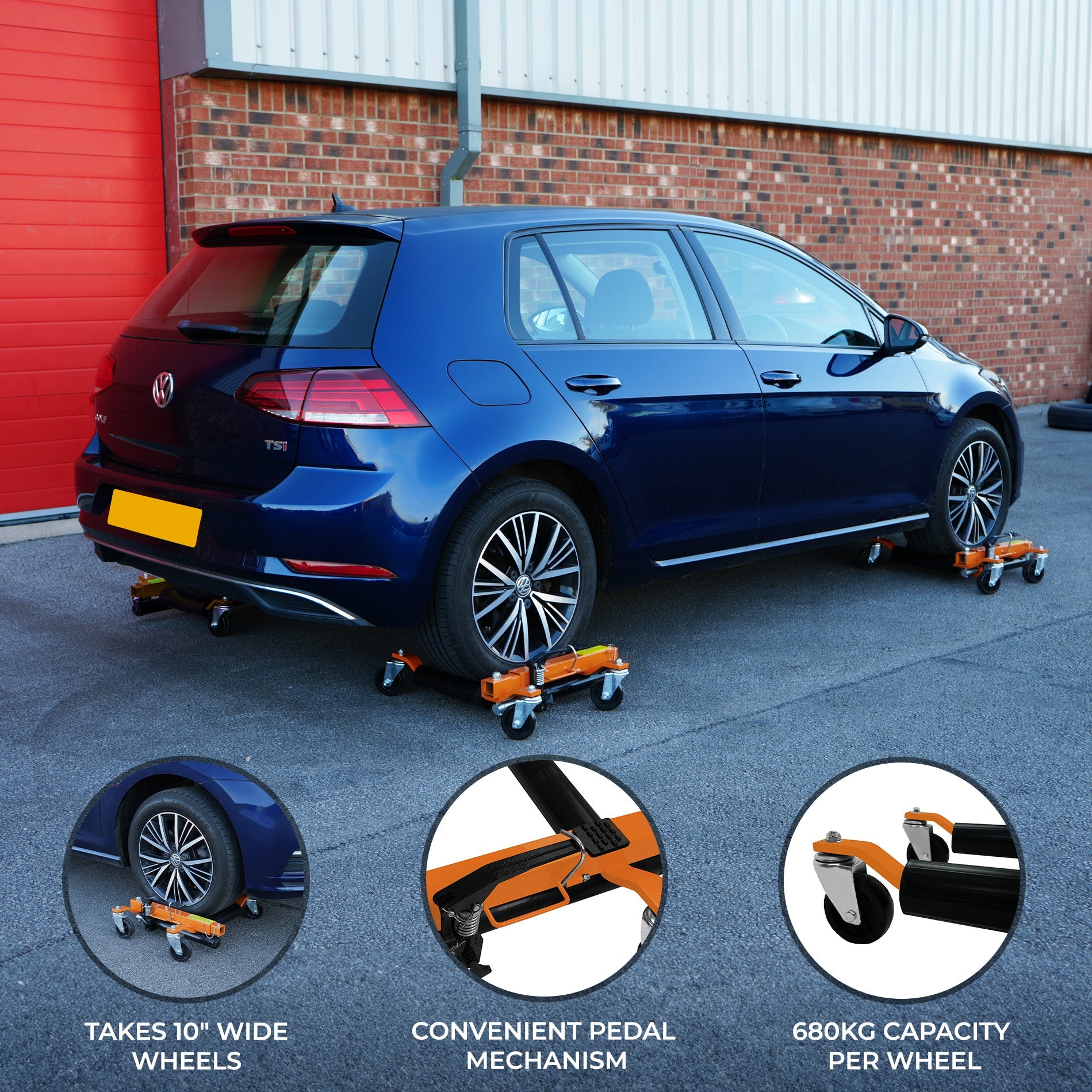

Secure handling features include a steel frame with a pin on a chain for safety and a quick-release screw for smooth lowering. With two skates, you can swivel a vehicle up to 180°, while using four skates delivers a full 360° rotation, providing exceptional flexibility in tight spaces.

Each skate is equipped with four wheels for smooth, omnidirectional movement and supports wheels up to 10 inches wide. Closed width is 63 cm, while the width between rollers expands to 58.2 cm and the total opened width reaches 82 cm, accommodating a wide range of vehicles. The large rollers ensure stable contact with the load and reliable operation.

Whether used in a professional auto repair shop or a busy showroom, these hydraulic positioning skates offer precise, safe, and efficient load movement.

Product Features:

• 680 kg Weight Capacity per Skate
• Hydraulic Foot Pedal Operation
• Smooth Wheel Maneuverability
• Expandable Width for Versatility
• 360° Swivel With Set of 4 Skates

Specifications:

• Colour: Orange
• Weight: 16.9 kg Each / 67.6 kg Set
• Frame Material: Q235 Steel
• Roller Material: High Density Polypropylene (HDPP)
• Height: 145 mm / 14.5 cm / 5.7 in
• Closed Width: 630 mm / 63 cm / 24.8 in
• Expanded Width: 820 mm / 82 cm / 32.3 in
• Width Between Rollers: 582 mm / 58.2 cm / 22.9 in
• Depth: 375 mm / 37.5 cm / 14.8 in
• Roller Diameter: 70 mm / 2.8 in
• Roller Length: 293 mm / 29.3 cm / 11.5 in
• Wheel Size: 95 mm / 3.75 in
• Max Lifting Height: 305 mm / 30.5 cm / 12 in
• Weight Capacity Per Skate: 680 kg / 1,500 lb
• 4 Skates Swivel: 360°

Box Contents:

• 4 x Hydraulic Positioning Skates
