Hydraulic Positioning Skates – Pair

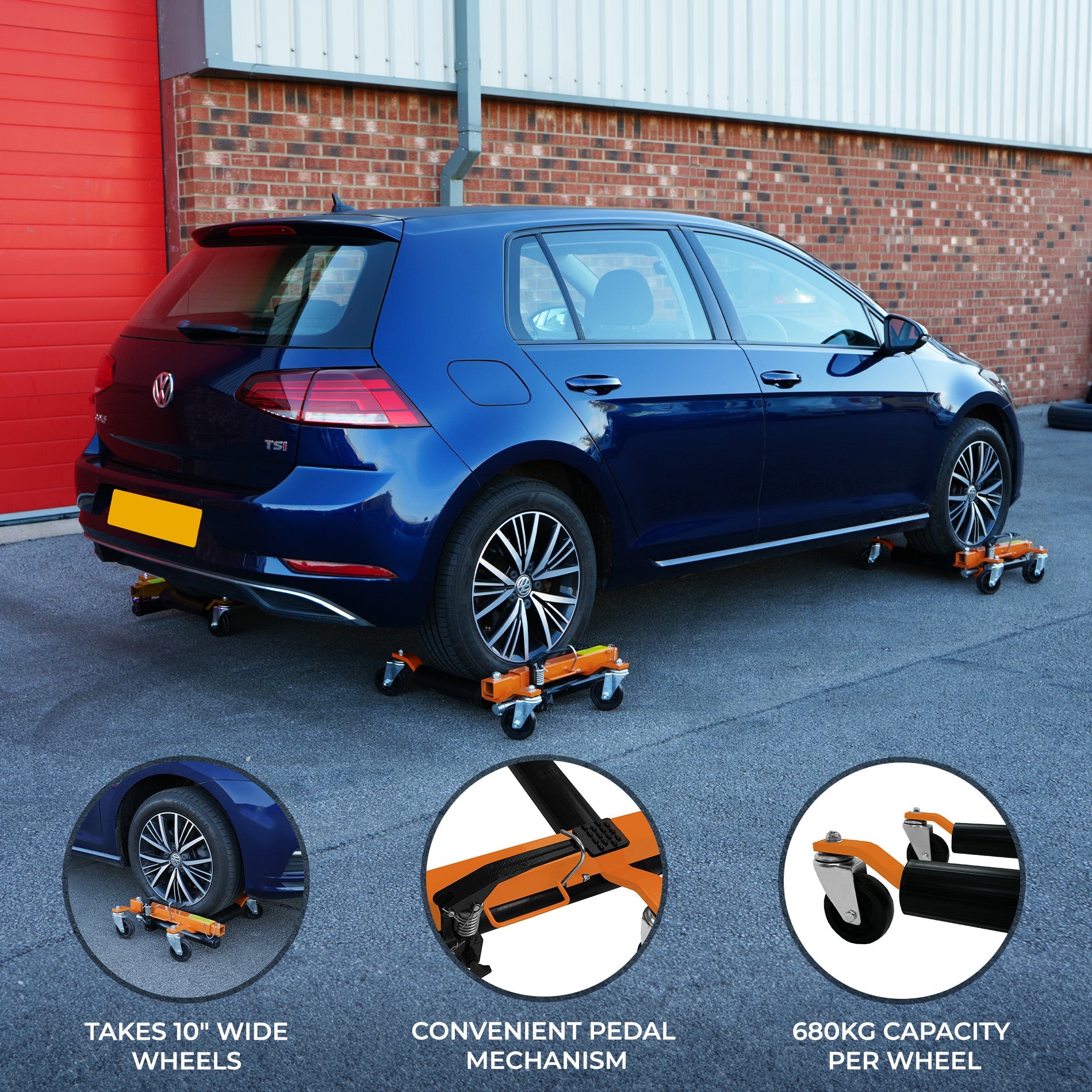

Experience effortless vehicle and equipment positioning with this set of 2 hydraulic positioning skates. Engineered for maximum strength and convenience, these skates are ideal for garages, workshops, and industrial environments where precision and mobility are essential.

Each skate supports up to 680 kg (1500 lb). The foot-operated hydraulic lifting system enables lifting with minimal manual effort, delivering full control. With a few presses of the foot pedal, you can raise the load up to 12 inches (305 mm) for easy repositioning and precise adjustments.

For secure handling, the steel skates feature a pin on a chain and a quick-release screw to ensure smooth lowering. With two skates, a vehicle can swivel up to 180 degrees; with four skates, a full 360-degree rotation is achievable, providing flexibility in tight spaces.

Each skate uses four 95 mm wheels for smooth, omnidirectional movement and supports vehicles with wheel widths up to 10 inches (254 mm). When closed, the width is 63 cm; when opened, the width between the rollers expands to 58.2 cm, giving a total expanded width of 82 cm. The robust rollers ensure stable contact with the load and smooth operation.

Whether in a professional auto repair shop or a busy showroom, these hydraulic positioning skates offer precise, safe, and efficient movement of heavy loads.

Product Features:

• 680 kg weight capacity
• Hydraulic foot pedal operation
• Smooth wheel maneuverability
• Expandable width for versatility
• 180° swivel with 2 skates
• 360° swivel with 4 skates

Specifications:

• Colour: Orange
• Weight: 16.9 kg each / 33.8 kg pair
• Frame Material: Q235 Steel
• Roller Material: High Density Polypropylene (HDPP)
• Height: 145 mm
• Closed Width: 63 cm
• Expanded Width: 82 cm
• Depth: 37.5 cm
• Roller Diameter: 70 mm
• Roller Length: 29.3 cm
• Wheel Size: 95 mm
• Max Lifting Height: 30.5 cm
• Weight Capacity: 680 kg / 1500 lbs
• 2 Skates Swivel: 180°
• 4 Skates Swivel: 360°

Box Contents:

• 2 x Hydraulic Positioning Skates
