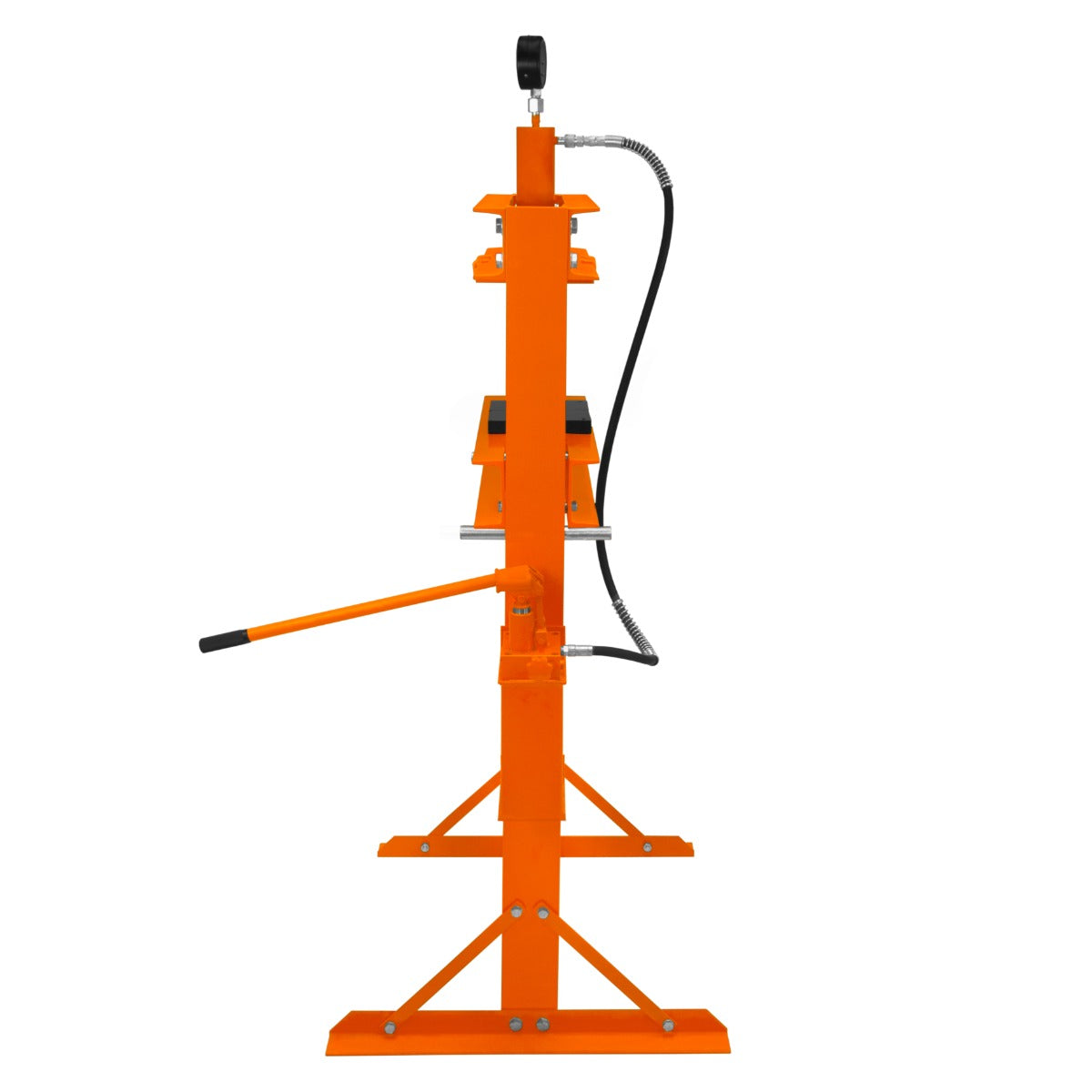

Hydraulic Shop Press with Gauge – 20-Tonne Capacity

This 20-tonne hydraulic shop press with gauge provides reliable, precise pressing performance for garages, workshops, and light industrial applications. Built from solid steel and finished with an orange powder-coated coating, it offers durability and long-lasting aesthetics in a compact, floor-mounted design.

The hydraulic system features a two-speed hand pump for rapid initial pressure and a built-in pressure gauge to monitor force during operation. The cylinder delivers the necessary force to shape, assemble, or disassemble metal components with controlled accuracy. A detachable gauge and hand pump facilitate compact storage when not in use.

Key features include:
- Adjustable vertical working space from 0 to 1015 mm via nine positions (12 cm increments)
- Lateral ram movement of 270 mm for accommodating larger or offset workpieces
- Eight interchangeable steel mandrels plus an adaptor to fit varied workpieces
- Storage tray integrated into the frame to keep mandrels organized and accessible
- Robust, powder-coated steel frame with wide feet for stable, free-standing operation
- Compact footprint with a space-saving open frame design

Specifications:
- Colour: Orange
- Material: Powder-coated steel
- Weight: 93 kg
- Height: 180 cm
- Width: 70 cm
- Depth: 70 cm
- Capacity: 20 Tonne / 20,000 kg
- Working Area: 0–1015 mm
- Lateral Ram Movement: 270 mm
- Working Height Increments: 9 x 12 cm
- Mandrel Diameter: 10, 12, 16, 18, 20, 22, 25, 30 mm
- Mandrel Length: 50, 60, 60, 85, 85, 85, 110, 110 cm
- Certification: CE & UKCA

Box contents:
- 1 x 20 Tonne Hydraulic Shop Press
- 8 x Steel Mandrels
- 1 x Mandrel Adaptor
