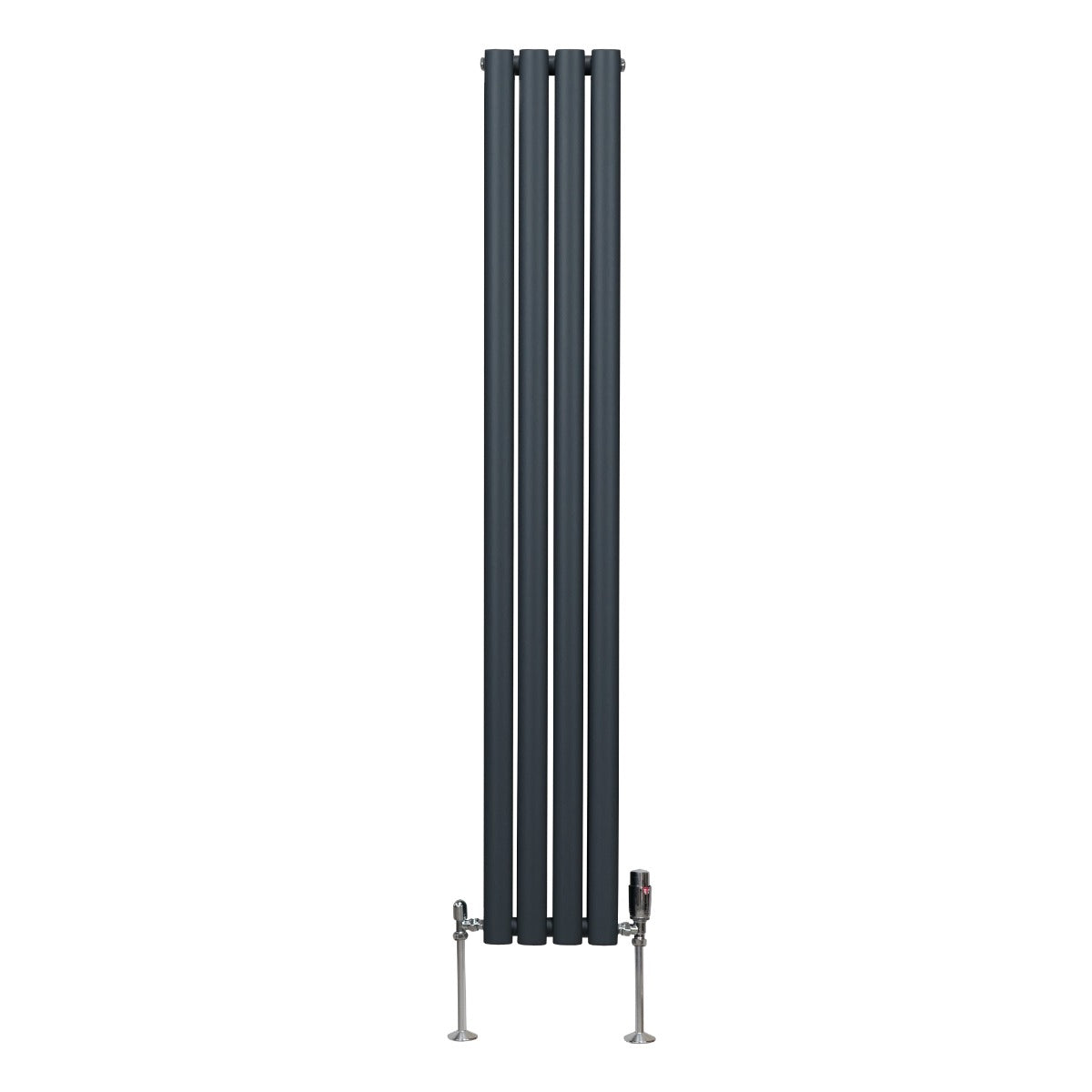

Oval Column Radiator with Valves - 1600 x 240 mm - Anthracite Grey

Enhance warmth and style with our Oval Column Radiator in Anthracite Grey, supplied with a thermostatic valve set for precise comfort control.

Manufactured from 1.5mm carbon steel and finished with a triple-layer powder coating, this radiator is built for durability and lasting visual appeal. It measures 1600mm in height and 240mm in width, featuring four oval tubes arranged as four columns with individual tube dimensions of 50mm x 25mm.

Heat output delivers robust performance, with approximately 2797 BTU/hr at 60°C (and 2202 BTU/hr at 50°C), making it suitable for a range of spaces. The anthracite finish provides a bold focal point that complements contemporary interiors.

Coatings and certification: triple-layer powder coating for durability; CE and UKCA marks; BS EN 442 and ISO 9001:2015 compliant standards.

Designed for easy installation, it comes with all fixtures and fittings, including secure brackets, a fixing kit, and a chrome thermostatic valve set. Inlet/outlet compatibility is standard 0.5" BSP, suitable for UK and EU heating systems.

Valve features: Angled thermostatic valve with rotary control, temperature range 6–28°C, lockshield functionality for efficient flow regulation, maximum 12 bar pressure, maximum flow temperature 100°C, nominal flow 2.8 L/m, and 1/2" x 15mm connection.

Care and maintenance: The radiator’s triple-layer coating helps resist wear, and the included cleaning brush supports straightforward upkeep.

Box contents:

• 1 x Oval Column Radiator
• 4 x Secure Brackets
• 1 x Fixing Kit
• 1 x Flexible Cleaning Brush
• 1 x Thermostatic Valve Set

Radiator Specifications:

• Colour: Anthracite Grey
• Weight: 18.3kg
• Material: 1.5mm Carbon Steel
• Finish: Triple Layered Powder Coating
• Height: 1600mm
• Width: 240mm
• Radiator Depth: 78mm
• Depth With Bracket: 104mm
• Gap Between Tubes: 10mm
• Individual Oval Tube Size: 50mm x 25mm
• Number Of Columns: 4
• BTU Rating @ 50°C: 2202
• BTU Rating @ 60°C: 2797
• Inlets/Outlets Size: Standard 0.5" BSP Bore
• Compatibility: All UK & EU Heating Systems
• Testing: BS EN 442 & ISO 9001:2015 Standards
• CE Certificate: CE & UKCA

Valve Specifications:

• Material: Brass
• Finish: Polished Chrome
• Weight: 0.9kg
• Style: Angled
• Control Style: Rotary Knob
• Type: Thermostatic
• Temperature Range: 6-28 Degrees
• Maximum Bar Pressure: 12
• Maximum Flow Temperature: 100 Degrees
• Nominal Flow Rate: 2.8L/m
• Connection: 1/2" x 15mm
