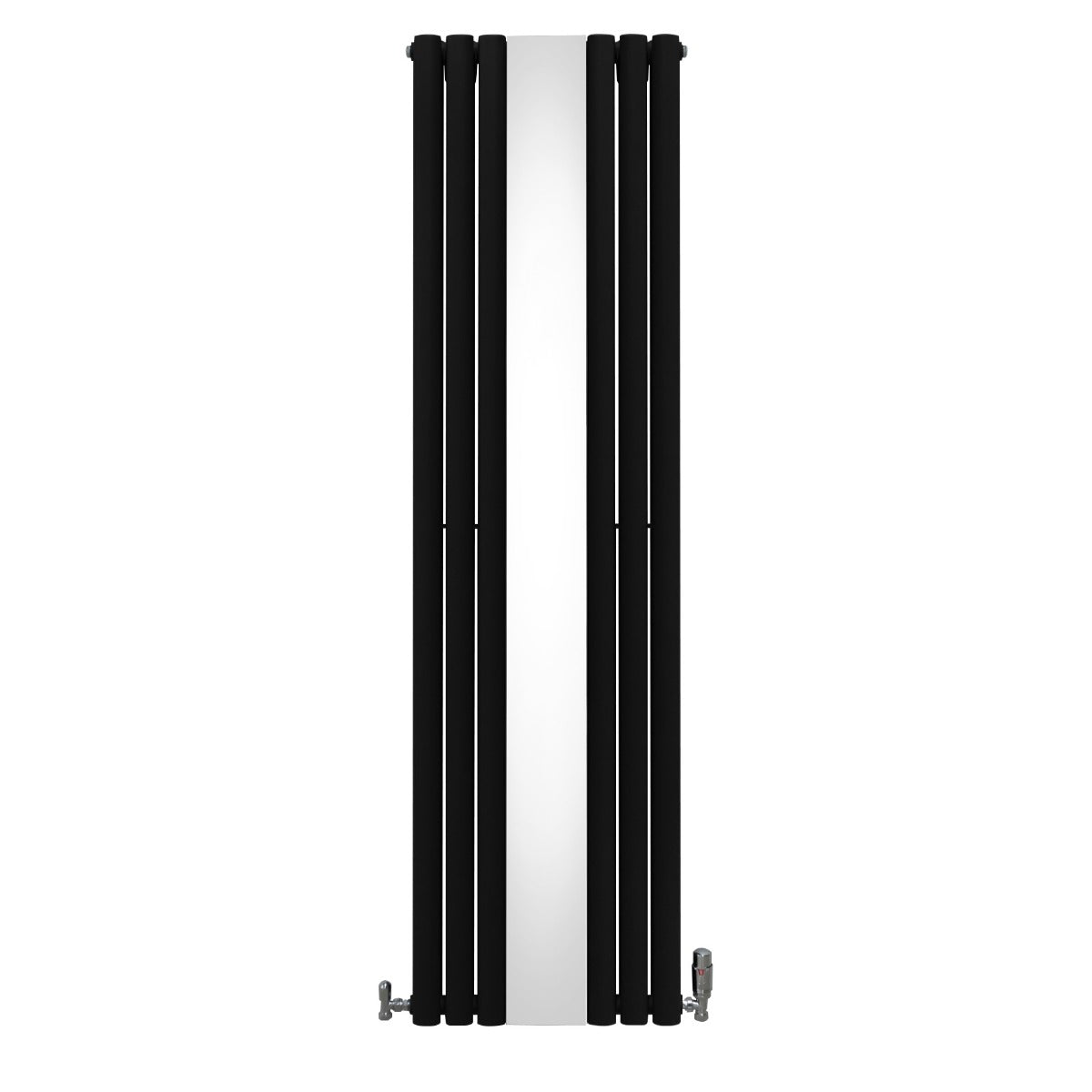

Oval Mirror Radiator with Valves – 1800 x 500 mm – Black

Enhance warmth and style with our Oval Panel Mirror Radiator in black. This vertical unit combines a central mirror with a thermostatic chrome valve set for precise comfort and modern efficiency.

Constructed from premium 1.5mm carbon steel and finished with a triple-layer powder coating, it is built for durability and easy maintenance. It stands 1800mm tall and 500mm wide, offering versatile placement in a range of spaces.

Six 50mm-diameter tubes provide robust heating performance, delivering strong heat output to keep rooms comfortable. The radiator's BTU rating is 5009 BTU at 60°C (3944 BTU at 50°C). The depth is 78mm, with brackets extending to 103mm.

Integrated central mirror measures 1800 x 145 mm with a thickness of 5 mm. The mirror is shatterproof and heat-resistant and is supported by a steel back plate for added stability.

A cleaning brush is included to simplify maintenance.

This radiator is certified to CE and BS EN 442 standards, ensuring compliance with quality and safety expectations. It is designed for compatibility with all UK and EU heating systems.

The standard 0.5" BSP inlet/outlet size allows flexible valve choices, and this unit arrives with a chrome thermostatic valve set for immediate installation.

Valve features include brass construction, angled chrome finish, thermostatic control with a rotary knob, temperature range of 6–28°C, maximum operating pressure of 12 bar, maximum water temperature of 100°C, and connection 1/2" x 15mm.

Box contents:
- 1 x Oval Panel Mirror Radiator
- 4 x Secure Brackets
- 1 x Fixing Kit
- 1 x Flexible Cleaning Brush
- 1 x Thermostatic Valve Set

Product features:
- Premium 1.5mm carbon steel
- Triple-layer powder coating
- Central mirror integration
- 6 x 50mm tubes for heat output
- Chrome thermostatic valve set included
- 0.5" BSP inlet/outlet compatibility
- CE and BS EN 442 certified
- Included cleaning brush
- All fixtures and fittings included

Radiator specifications:
- Colour: Black
- Height: 1800mm
- Width: 500mm
- Depth: 78mm (brackets extend to 103mm)
- Weight: 37.75kg
- Material: 1.5mm carbon steel
- Finish: Triple-layer powder coating
- Mirror dimensions: 1800mm x 145mm
- Mirror thickness: 5mm
- Number of tubes: 6
- Tube diameter: 50mm
- BTU rating @ 50°C: 3944
- BTU rating @ 60°C: 5009
- Inlets/Outlets size: 0.5" BSP
- Compatibility: UK & EU heating systems
- Testing: BS EN 442 & ISO 9001:2015
- Certifications: CE & UKCA

Valve specifications:
- Material: Brass
- Finish: Polished chrome
- Weight: 0.9kg
- Style: Angled
- Control: Rotary knob
- Type: Thermostatic
- Temperature range: 6–28°C
- Maximum bar pressure: 12
- Maximum flow temperature: 100°C
- Nominal flow rate: 2.8 L/m
- Connection: 1/2" x 15mm

Box contents (reiterated for clarity):
- 1 x Oval Panel Radiator with mirror
- 4 x Secure brackets
- 1 x Fixing kit
- 1 x Cleaning brush
- 1 x Thermostatic valve set
