Petrol-Powered Tracked Mini Dumper Tipper

The Petrol-Powered Tracked Mini Dumper is a compact, robust transporter designed for construction, landscaping, and agricultural operations. Its tracked drive and hydraulic tipping system enable efficient movement of materials such as soil, sand, gravel, rocks, and debris around site locations.

Load capacity and cargo space: The dumper handles up to 500 kg and provides a dump box measuring 100 x 70 x 45 cm. An optional extension box attaches to the dumper with four secure clips to supply additional cargo space for larger loads. Its compact design allows operation in areas inaccessible to larger machinery.

Powerful tipping with hydraulic operation: The hydraulic pump powers the tilting mechanism for easy unloading. The unit features a simple engine switch, recoil start, and a four-speed gearbox (3 forward, 1 reverse) for versatile control. Steering levers and a throttle integrated into the handlebars enable precise handling, while an automatic brake enhances on-site safety.

Powertrain and performance: This model is powered by a 270 cc, 9 HP four-stroke petrol engine. The 6 L fuel tank supports longer work sessions between refuels, and the machine operates at a sound level of approximately 103 dB.

All-terrain capability: 18 cm wide tracks provide stability across uneven surfaces and slopes, with reduced risk of mud buildup and blockages for consistent performance.

Accessibility and transportability: Two secure steel ramps aid in loading, unloading, and transporting the unit between sites. The ramps feature a non-slip serrated surface for grip, fold for compact storage, and include side handles for easy carrying.

Attachments and accessories: A snow shovel attachment is available, featuring a durable steel blade and quick-install mounting accessories for easy use during winter conditions.

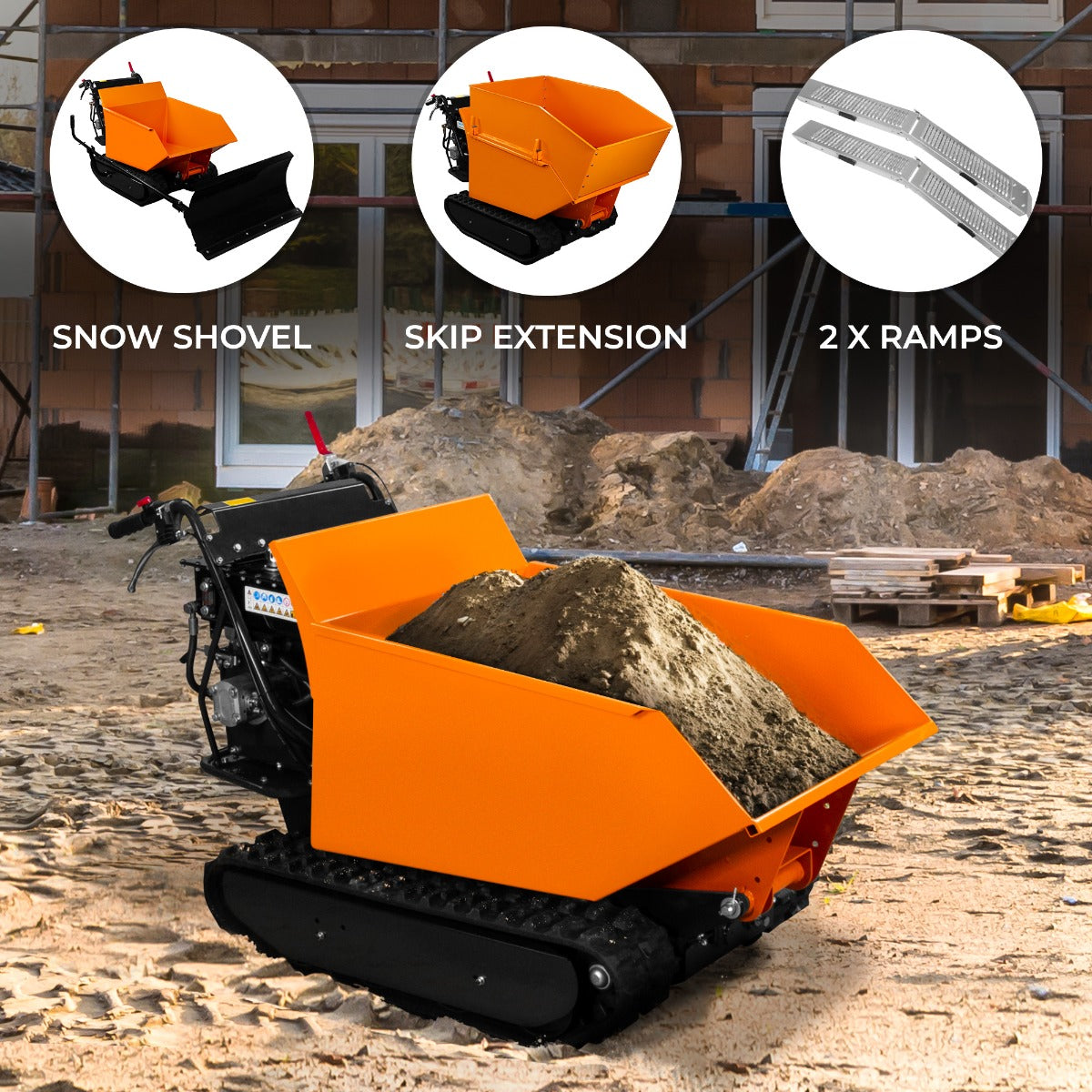

Box contents: 1 x Mini Tracked Petrol Tipper, 2 x Sturdy Steel Ramps, 1 x Effective Snow Shovel, 1 x Practical Dump Box Extension.

Product Features:

• Load Capacity: 500 kg
• Engine: 270 cc, 9 HP
• Gearbox: 4 speeds (3 Forward, 1 Reverse)
• Tracks: 18 cm wide all-terrain
• Includes Box Extender, Snow Shovel, and 2 x Ramps

Specifications:

• Colour: Orange
• Material: Steel
• Weight: 275 kg
• Height: 98 cm
• Width: 70 cm
• Depth: 170 cm
• Extension Box Height: 40 cm
• Extension Box Width: 70 cm
• Extension Box Depth: 107 cm
• Dump Box Height With Extension: 85 cm
• Track Width: 18 cm
• Load Capacity: 500 kg
• Engine: 4-stroke 270 cc petrol
• Power: 9 HP
• Petrol Tank Capacity: 6 L
• Engine Oil Capacity: 1.1 L
• Sound Output: 103 dB
• Number of Gears: 4 (3 Forward & 1 Reverse)
• Bin Size: 100 x 70 x 45 cm
• Maximum Pressure: 200 BAR
• Hydraulic Tank Capacity: 4.5 L
• CE Certificate: Yes
