Powder Coating System Bundle: Powder Coating Machine with Curing Oven

The Powder Coating System Bundle combines a high-capacity powder coating machine with a dual-shelf curing oven designed for larger projects and efficient workflow.

The 45 L powder hopper supports extended coating runs, while the curing oven offers two shelves with rails for organized curing. Both units are designed for ease of use with straightforward controls and solid build quality.

Powder coating provides a durable, high-quality finish with strong resistance to corrosion, fading and chipping when applied correctly, making it suitable for a wide range of equipment and assemblies.

Powder coating uses dry powder particles that are electrostatically charged and sprayed onto grounded metal workpieces. After application, parts are cured in a dedicated curing oven to form a strong, protective coating.

Powder coating equipment is used across various industries, including automotive parts, medical equipment, home appliances and more.

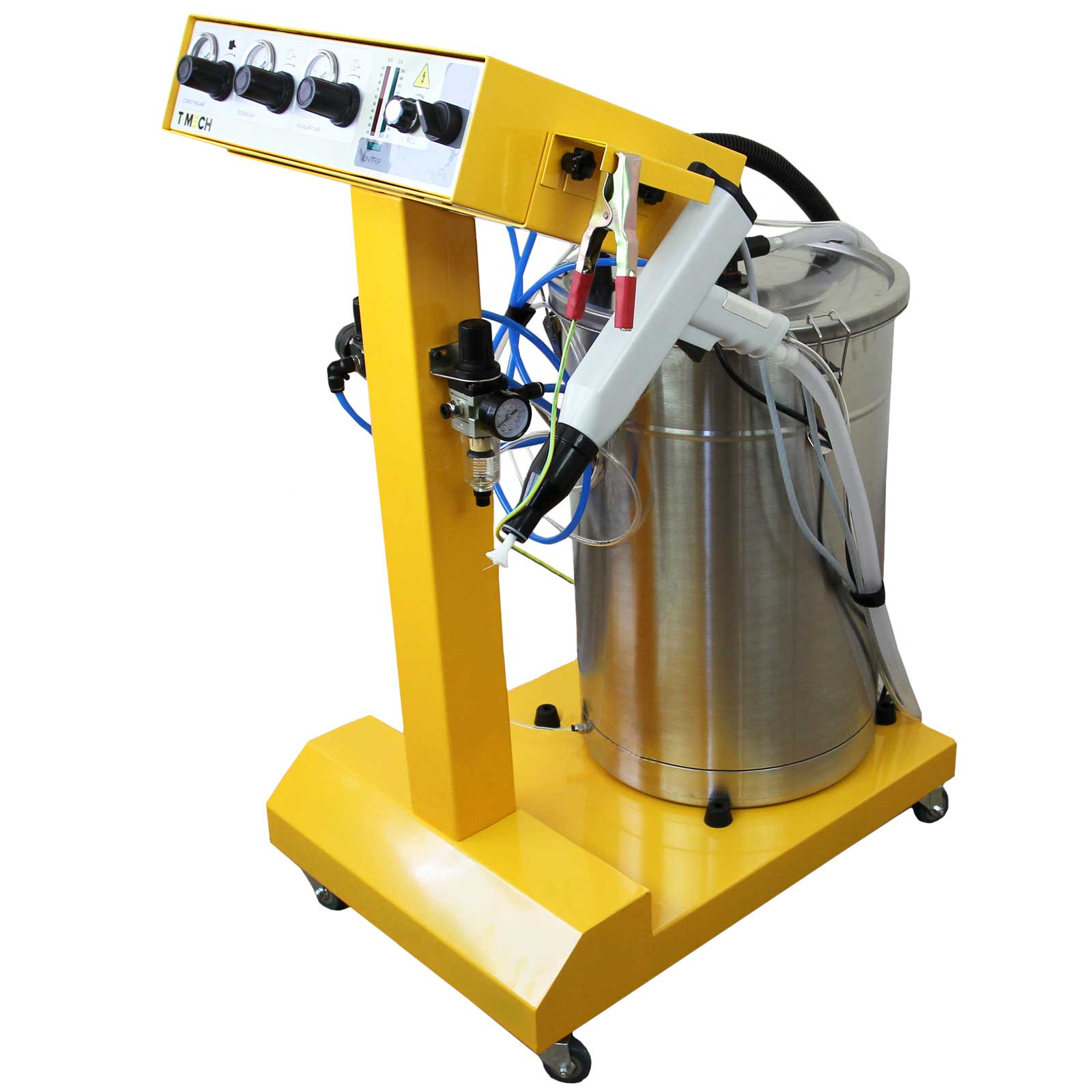

Powder Coating Machine

• Product features:
• Easy-to-use control panel
• Includes 1 spray gun
• Mobile design with wheels for portability
• CE approved
• Dimensions: 74 cm (H) x 65 cm (W) x 50 cm (D)

Specifications:

• Input Power Voltage: 220–230 VAC
• Frequency: 50–60 Hz
• Input Power: 40 W
• Electromagnetic valve control power: 24 V DC
• Input Air Pressure: 0–0.6 MPa
• Output Air Pressure: 0–0.5 MPa
• Max. Air Consumption: 13.2 m3/h
• Output Powder Volume: Max. 600 g/min
• Output Powder Voltage: 0–100 kV
• Output Current: 0–150 µA
• Powder Hopper Volume: 45 L

Electrical data

• Nominal input voltage: 200–240 V
• Rated output voltage (to gun): 24 V
• Rated output current (to gun): 1.2 A
• Protection type: IP54
• Temperature range: 0 °C to +40 °C
• Solenoid Valve Voltage: DC24 V
• Gun output voltage: 0–100 kV
• Gun output current: 0–150 µA

Pneumatic data

• Max. input pressure: 0.8 MPa
• Min. input pressure: 0.5 MPa
• Output pressure: 0.8 MPa
• Max. water vapour content of the compressed air: 1.3 g/m3
• Max. oil vapour content of the compressed air: 0.1 mg/m3
• Max. compressed air consumption: 13.2 m3/h (0.4 MPa)

Gun Parameter

• Input: 24 V
• Voltage Frequency: Around 25 kHz
• Input Current: 1.2 A
• Output Voltage: 0–100 kV DC
• Max. Output powder volume: Around 600 g/min
• Gun cable: 6 m
• Gun weight: 460 g
• Container Capacity: 45 L

Powder Coating Curing Oven

• Powerful 7.2 kW curing oven with double shelf
• New and improved control panel for quick and easy curing
• Bolt-lock safety system
• Designed to be wired to a 32 A plug
• Four shelves and two rails per shelf

Specifications:

• Voltage: 230 V / 50 Hz
• Power: 60 W x 2
• Temperature range: 0–250 °C
• Air speed: 2800 rpm
• Power: 7.2 kW
• Temperature stability: ±5 °C
• Insulated plate: 7–8 cm; Insulation: high-temperature silicone cotton
• External dimensions: 199 cm (H) x 121.5 cm (W) x 101.8 cm (D)
• Internal dimensions: 160 cm (H) x 84.5 cm (W) x 84.5 cm (D)
• Material: Steel, Iron, Plastic

The oven may have minor cosmetic imperfections.
