T-Mech 330mm Block Splitter for Concrete Blocks

The T-Mech 330mm Block Splitter is designed for cutting concrete blocks and paving slabs with ease. It delivers substantial splitting force while requiring moderate operating effort, making it suitable for on-site use by contractors and construction professionals.

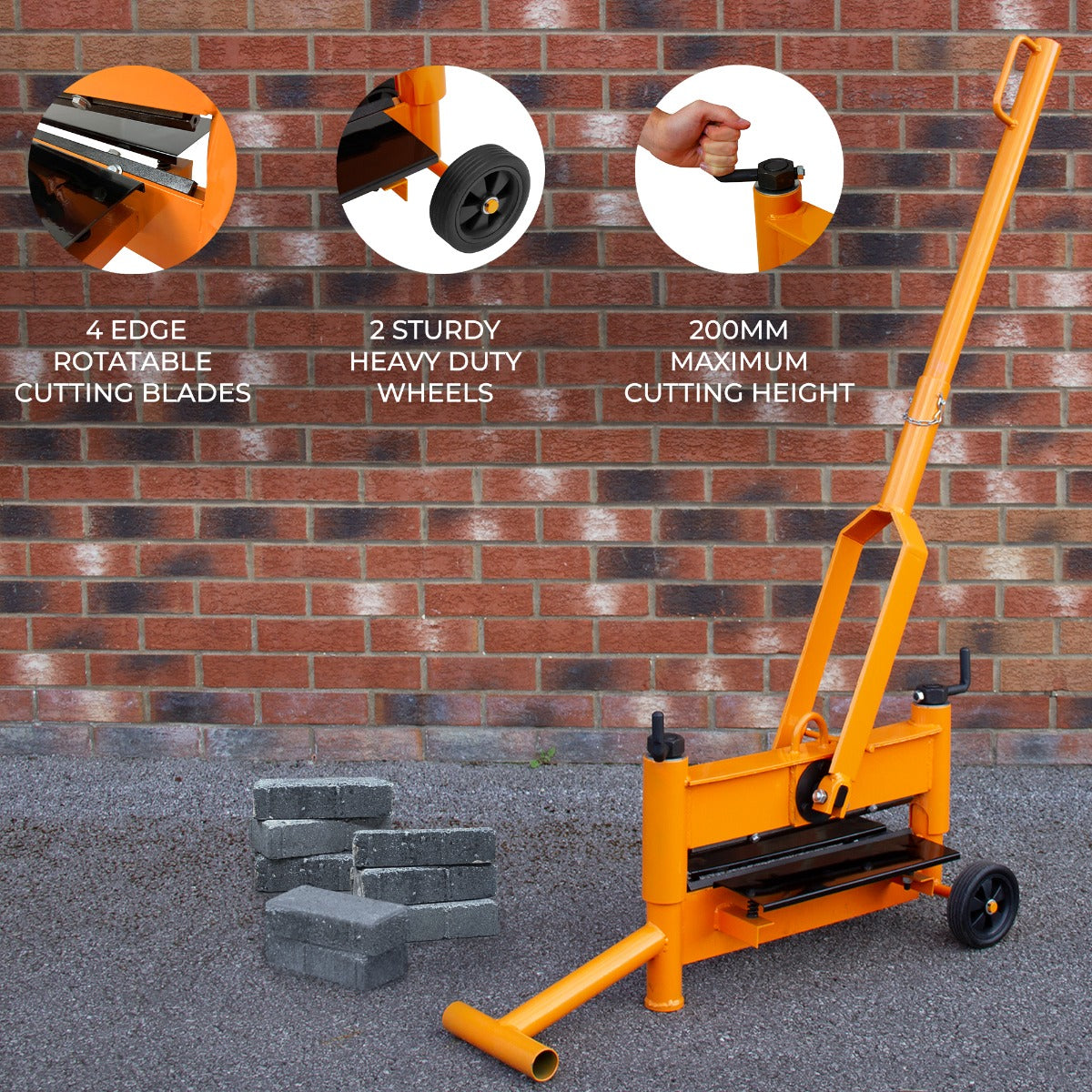

Construction and blade system: The machine features a fully welded frame manufactured from powder-coated steel for durability. It uses two 4-edge, rotatable cutting blades mounted on the top and bottom, enabling cuts on blocks up to 330 mm long.

Leverage and cutting action: A long 112 cm handle provides significant leverage to cut through thick blocks. Apply force to the lever and the rotatable blades split the workpiece with precision, while the design helps minimise dust and noise and water waste compared with traditional cutting methods.

Workholding and adjustments: A spring-loaded worktable secures the block during cutting for consistent results. The cutting height is adjustable from 10 mm to 200 mm and can be set quickly using the adjustment knobs, moving the blades up or down to suit the workpiece.

Mobility and storage: Two heavy-duty wheels enable smooth movement on uneven job sites, and the chassis handle is shaped for safe lifting. The cutting lever can be removed for compact storage when not in use.

Durable, portable, and straightforward to operate, this block splitter provides reliable performance for splitting paving slabs and concrete blocks with precision and efficiency.

Product Features:

• 330 mm Maximum Cutting Length
• Adjustable Cutting Height from 10 to 200 mm
• 2 x 4-edge Rotatable Cutting Blades
• Fitted Wheels and Handle for Easy Transportation

Specifications:

• Colour: Orange
• Material: Powder Coated Steel
• Weight: 35 kg
• Height: 119 cm – 138 cm (Adjustable)
• Width: 27 cm (0.27 m / 10.6 in)
• Depth: 77 cm (0.77 m / 30.3 in)
• Max Cutting Length: 330 mm
• Minimum Cutting Height: 10 mm
• Maximum Cutting Height: 200 mm
• Handle Length: 112 cm
• Number of Wheels: 2

Box Contents:

• 1 x 330mm Block Splitter
