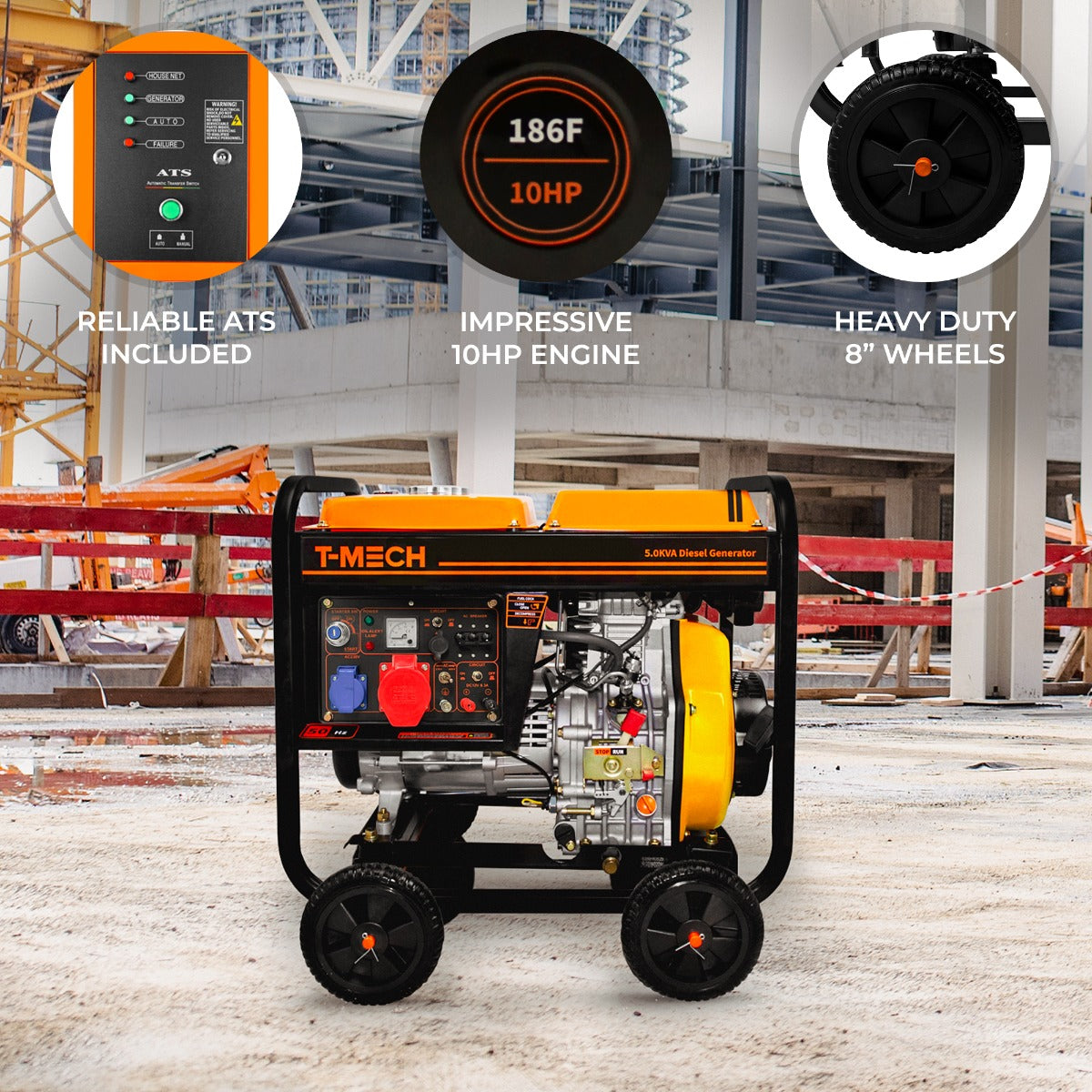

T-Mech 5 kVA Portable Open-Frame Diesel Generator

The T-Mech 5 kVA Portable Open-Frame Diesel Generator provides reliable backup electrical power for homes, offices, and small worksites. Its open-frame design supports flexible installation in a variety of environments.

Equipped with an Automatic Transfer Switch (ATS), the generator starts automatically during a power outage and restores power to connected loads with minimal downtime. When mains power is restored, the ATS detects the change and shuts the unit off to reduce running costs. An electric start is provided, with manual start/stop capability if needed.

A 12.5 L fuel tank offers extended runtime—up to 14 hours at 50% load—making it suitable for domestic use, construction sites, and light industrial applications. With a maximum output of 5 kVA, this three-phase unit can power multiple devices simultaneously. It includes 1 x 16 A 230 V AC outlet, 1 x 16 A 400 V AC outlet, and 1 x 12 A DC outlet.

Constructed from powder-coated steel, the generator resists scratches and corrosion while maintaining a robust appearance. The black and orange finish provides a modern look that blends with various surroundings. Although open-framed, the unit operates at a comparatively quiet 77 dB at 7 m. Mobility is enhanced by four 8-inch wheels and fold-in/out handles integrated into the industrial frame.

Safety features include a low-oil warning indicator and automatic shutdown on low oil pressure to protect the engine. A fuel funnel is included for clean filling, and an AVR (automatic voltage regulator) stabilizes output to protect sensitive equipment.

Whether you need a reliable backup power source during outages or portable power for on-site work, this diesel generator is designed to meet diverse power requirements.

Product Features:

• Electric Start Technology
• Automatic Switch Panel
• 12.5 L Fuel Tank Capacity
• Up to 14 Hours Running Time at 50% Load
• 10 HP Engine

Specifications:

• Colour: Black and Orange
• Material: Powder Coated Steel
• Weight: 105.7 kg
• Height: 698 mm
• Width: 702 mm
• Depth: 484 mm
• Fuel Tank Capacity: 12.5 L
• Running Time at 50%: 14 Hours
• Max Engine Output: 6.3 kW / 10 HP
• Generator Rated Output: 4500 W
• Generator Max Output: 5000 W
• Phase: Three
• Starting System: Electric
• Voltage: 230 V / 400 V
• Frequency: 50 Hz
• RPM: 3000
• dB at 7 m: 77
• AC Output: 1 x 16 A 230 V & 1 x 16 A 400 V
• DC Output: 1 x 12 A
• Wheels: 4 x 8 in
• CE Certificate: CE & UKCA

Box Contents:

• 1 x Diesel Generator
• 1 x Practical Tool Kit
• 1 x Handy Fuel Funnel
