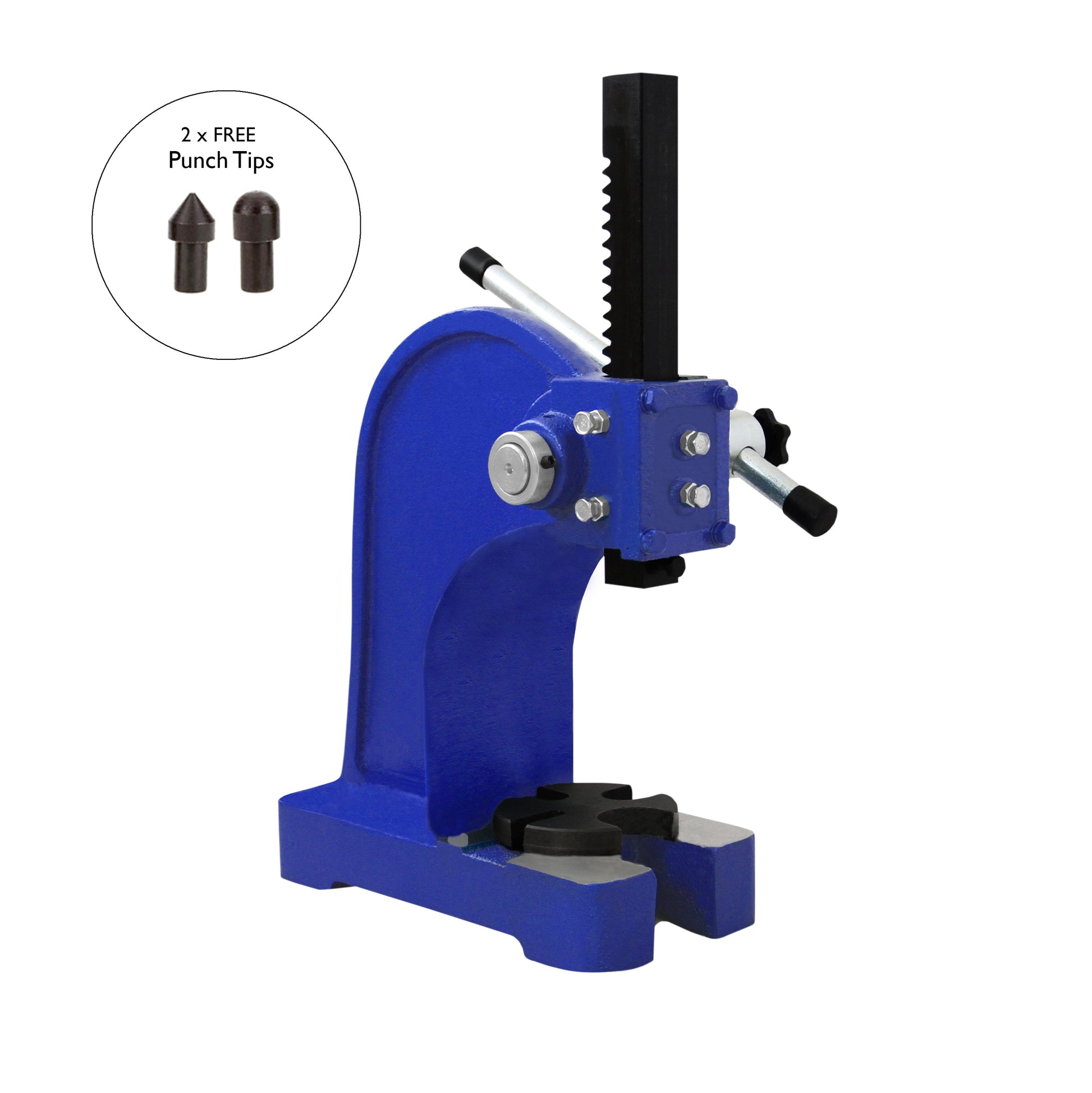

T-Mech Arbor Press – Manual Shop Press for Precision Pressing

The T-Mech Arbor Press is a hand-operated machine designed for installing and removing bearings, staking, punching, and flattening components with precision. It offers up to 1000 kg of pressing capacity to help complete tasks efficiently. For easy setup, mount the unit to your work surface using the base mounting holes and begin your work.

Built with a cast steel frame, this arbor press is sturdy and reliable, delivering dependable performance for small repair and assembly jobs.

Includes two free punch tips to suit common bearing and punch operations.

Product Features:
- Hand-operated arbor press designed to install and remove bearings
- Sturdy cast steel frame for durability
- Delivers consistent pressing performance
- Suitable for removing, staking, punching, and flattening bearings
- Capable of handling small repair and assembly tasks
- Pressing capacity of 1000 kg
- Stable and reliable machine
- Includes two free punch tips

Specifications:
- Frame Material: Cast Steel
- Press Capacity: 1000 kg
- Ram Dimensions: 25 x 25 x 243 mm
- Throat Depth: 140 mm
- Base Plate Dimensions: 90 mm
- Weight: 19.5 kg

Press Dimensions:
- Height: 29.8 cm / 289 mm / 11.73 in
- Width: 24.8 cm / 248 mm / 9.76 in
- Depth: 11.4 cm / 114 mm / 4.48 in

Tip 1 - Tipped Dimensions:
- Length: 25 mm / 0.98 in
- Width: 12 mm / 0.47 in
- Depth: 10 mm / 0.39 in

Tip 2 - Domed Dimensions:
- Length: 25 mm / 0.98 in
- Width: 12 mm / 0.47 in
- Depth: 10 mm / 0.39 in

Contents:
- 1 x Arbor Press
- 2 x Punch Tips
- 1 x Instruction Manual
