T-Mech Electrostatic Powder Coating System with 220L Sandblasting Cabinet

The T-Mech Electrostatic Powder Coating System with a 220L Sandblasting Cabinet offers an integrated solution for surface preparation and durable finishing. The enclosed sandblasting cabinet provides a dust-controlled environment for cleaning, deburring, rust removal, and powder-coating prep, while the electrostatic coating unit delivers efficient, high-quality powder application.

Key features
- Enclosed 220L sandblasting cabinet for safe, dust-free operation
- Portable, easy-to-maneuver design with built-in wheels
- Wide range of abrasive media options to suit different materials and finishes
- Gun kit, LED lighting, heavy-duty protective gloves, 4 ceramic nozzles, and 5 protective films included
- Powerful electrostatic powder coating machine with a large 45L powder hopper
- Fully portable system with an intuitive control panel and a single spray gun
- Powder coating creates durable, high-quality finishes with improved corrosion, fading, and chipping resistance

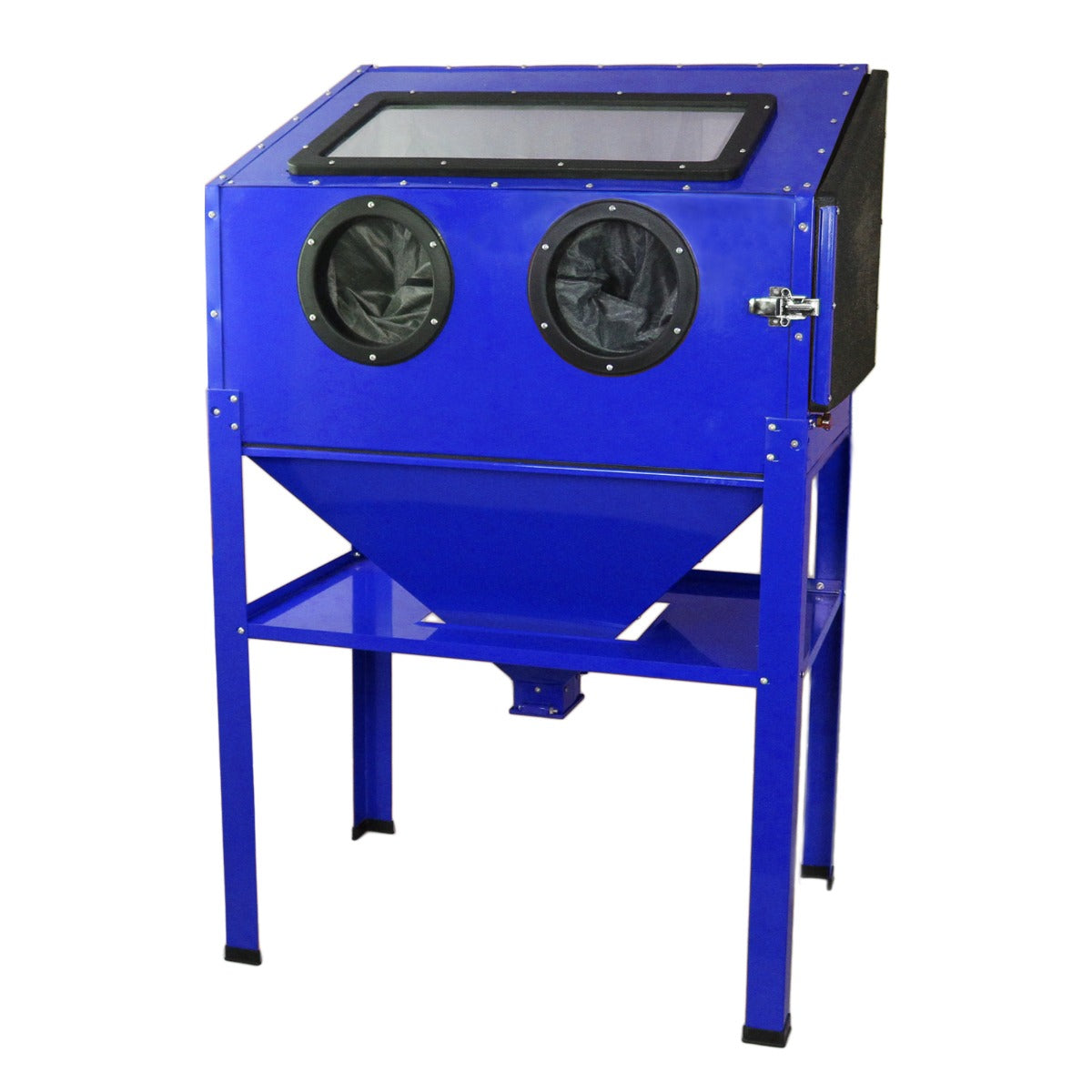

220L Sandblasting Cabinet specifications
- Color: Blue
- Weight: 41 kg
- Capacity: 220 L
- Overall dimensions: 138 cm (L) x 89 cm (W) x 56 cm (D)
- Working space: 840 mm (L) x 550 mm (W) x 370–550 mm (H)
- Viewing window: 540 mm (W) x 250 mm (H)
- Power supply: AC 220–240 V, 50 Hz
- Lighting: 10 W, 12 V DC LED
- Operating pressure: 40–80 PSI at 15–25 CFM
- Air consumption: 270 L/min at 6 bar
- Maximum working pressure: 116 psi
- Air inlet: 1/4" NPT
- Abrasive capacity: +/- 18 kg
- Dust port: 63 mm

Electrostatic powder coating machine specifications
- Color: Yellow
- Weight: 26.3 kg
- Dimensions: 74 cm (H) x 65 cm (W) x 50 cm (D)
- CE Approved: Yes
- Input power voltage: 220–230 VAC
- Frequency: 50–60 Hz
- Input power: 40 W
- Electromagnetic valve control power voltage: 24 V DC
- Input air pressure: 0–0.6 MPa
- Output air pressure: 0–0.5 MPa
- Air consumption: 13.2 m3/h
- Output powder volume: Max. 600 g/min
- Output powder voltage: 0–100 kV
- Output current: 0–150 μA
- Powder hopper volume: 45 L

Electrical data
- Nominal input voltage: 200–240 V
- Rated output voltage to gun: 24 V
- Rated output current to gun: 1.2 A
- Protection type: IP54
- Temperature range: 0 °C to 40 °C
- Solenoid valve voltage: DC 24 V
- Gun output voltage: 0–100 kV
- Gun output current: 0–150 μA

Pneumatic data
- Maximum input pressure: 0.8 MPa
- Minimum input pressure: 0.5 MPa
- Output pressure: 0.8 MPa
- Maximum water vapour content of compressed air: 1.3 g/m3
- Maximum oil vapour content of compressed air: 0.1 mg/m3
- Maximum compressed air consumption: 13.2 m3/h at 0.4 MPa

Gun parameters
- Input: 24 V
- Voltage frequency: ~25 kHz
- Input current: 1.2 A
- Output voltage: 0–100 kV DC
- Maximum output powder volume: ~600 g/min
- Gun cable length: 6 m
- Gun weight: 460 g
- Container capacity: 45 L

Industries and applications
- Suitable for auto parts, medical equipment, home appliances, and a wide range of manufacturing and finishing applications. This dual system supports efficient surface preparation and high-quality powder coating finishes on varied substrates.
