T-Mech Portable Silent Diesel Generator, 230V Single-Phase

For reliable backup power at home or on-site operations, the T-Mech diesel generator provides a robust single-phase 230V solution with a silenced, closed-frame design.

The built-in Automatic Transfer Switch (ATS) automatically starts the generator during a power outage and switches back to mains when supply is restored, minimizing downtime. An electric start allows manual control if required.

With a 20 L fuel tank, runtime is up to 16.5 hours at 50% load, suitable for domestic, construction, and light industrial use. Maximum output is 6 kVA (approximately 6,500 W) and rated output is 6 kW, enabling simultaneous operation of multiple devices. AC outlets include 1 x 32 A at 115 V, 1 x 16 A at 230 V, and 1 x 32 A at 230 V; a DC output of 12 A is also available.

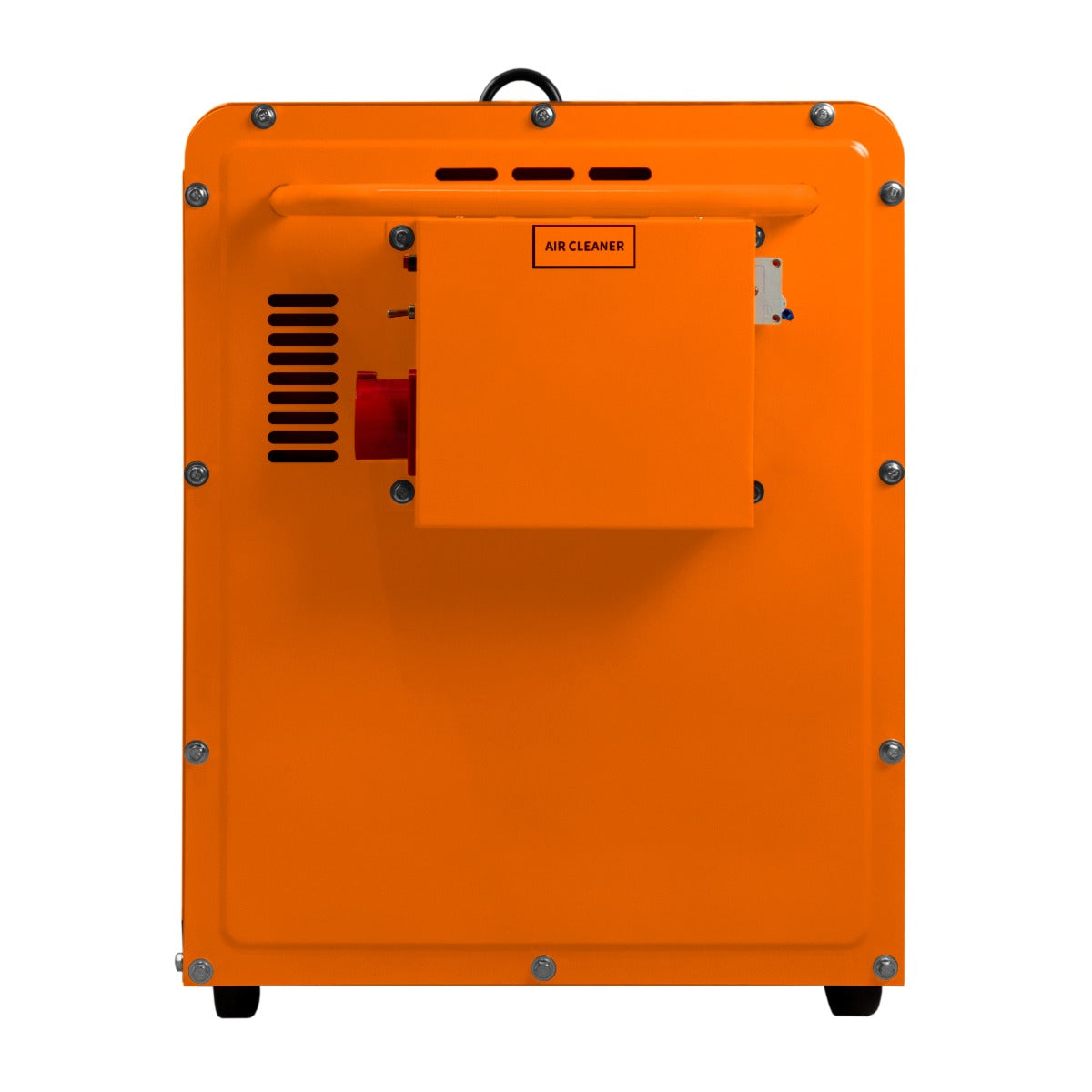

The enclosure features a closed-frame, powder-coated steel body that provides protection and a tidy appearance. The silenced design reduces noise to 72 dB at 7 m. Mobility is aided by four 4-inch wheels and a sturdy handle.

Safety and protection features include a low oil level indicator and automatic shut-off if oil pressure drops, protecting the engine. The unit includes an Automatic Voltage Regulator (AVR) for stable output to sensitive equipment. A convenient fuel funnel is supplied for clean filling, and the generator is CE and UKCA certified.

Product Features:

• Silent operation with a closed-frame design
• Electric start
• Built-in Automatic Transfer Switch (ATS)
• Large 20 L fuel tank
• Up to 16.5 hours running time at 50% load

Specifications:

• Colour: Black and Orange
• Material: Powder coated steel
• Weight: 154 kg
• Height: 761 mm
• Width: 932 mm
• Depth: 548 mm
• Fuel Tank Capacity: 20 L
• Running Time at 50%: 16.5 hours
• Engine Output: 9 kW / 13 HP
• Max Engine Output: 6 kVA
• Generator Rated Output: 6000 W
• Generator Max Output: 6500 W
• Phase: Single
• Starting System: Electric
• Voltage: 115/230 V
• Frequency: 50 Hz
• RPM: 3000
• dB at 7 m: 72
• AC Output: 1 x 32A 115V, 1 x 16A 230V, 1 x 32A 230V
• DC Output: 1 x 12A
• Wheels: 4 x 4"
• Certification: CE & UKCA certified

Box Contents:

• 1 x Powerful Diesel Generator
• 1 x Practical Tool Kit
• 1 x Handy Fuel Funnel
• 2 x Starter Keys
